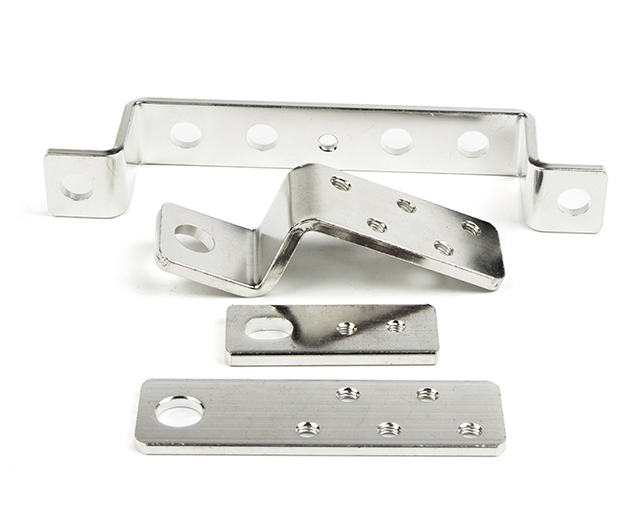

Silver Plated Copper Bus Bar

Silver Plated Copper Bus Bars are high-performance electrical conductors designed to meet the stringent demands of modern power systems. Combining the high conductivity of copper with the corrosion resistance and surface performance of silver, these silver coated Copper Busbars are ideal for critical power distribution across industrial, commercial, transportation, and aerospace applications.

Key Characteristics of Silver Plated Copper Bus Bars

Silver Plated Copper Bus Bars offer unmatched technical advantages:

• Exceptional Electrical Conductivity
  With copper's conductivity at 58.0×10⁶ S/m and silver plating reaching 63.0×10⁶ S/m, these silver plated copper conductors ensure ultra-low resistance and efficient power flow, minimizing I²R losses.

• Low Surface Resistivity
  Silver-plated surfaces achieve a surface resistivity of 1.59 μΩ·cm, outperforming bare copper at 1.68 μΩ·cm, which is crucial for low contact resistance performance.

• Outstanding Corrosion Resistance
  Silver plating significantly enhances oxidation resistance. In salt spray tests, silver plated copper ground bars showed 500+ hours of protection versus 24–48 hours for uncoated copper.

• High Thermal Conductivity
  The copper core and silver coating combination enables efficient heat transfer at 401 W/(m·K) and 429 W/(m·K) respectively—ideal for high current environments.

• Wide Operating Temperature
  With operational tolerance from -40°C to +150°C and short-term peaks up to 200°C, silver plated flat copper bars can perform in harsh thermal conditions.

• Flexible Plating Thickness
  Plating options range from 5 to 20 μm standard, with up to 50 μm for heavy-duty or high-frequency applications.

• High Current Capacity
  A typical 100mm × 10mm silver coated copper busbar can carry 2000A continuously with effective thermal management.

• Excellent Skin Effect Mitigation
  At frequencies above 1 MHz, even a 5 μm silver layer is sufficient due to silver’s superior high-frequency conductivity.

Custom Specification Table

Application Scenarios for Silver Coated Copper Busbars

These bus bars are engineered for power-critical and reliability-driven sectors:

• Power Distribution Systems
  Widely used in switchgear, panel boards, and substations, where contact resistance<0.1 m="">

• Railway Electrification
  Deployed in catenary systems and power collection shoes, handling 25kV AC or 1500V DC in high-vibration environments.

• Aerospace and Defense
  Approved for MIL-DTL-45204 standards, silver plated copper electrical bars support avionics power with robust anti-corrosion layers.

• Renewable Energy
  Ideal for solar farms and wind turbines, linking multiple inverters at 1000V DC, with added UV and salt mist resistance.

• High-Frequency Equipment
  Used in RF systems, telecommunication racks, and satellite electronics, where skin depth in silver (2.1 μm at 1 GHz) provides efficient current handling.

• Industrial Automation
  Powers robotics and CNC machinery that demand 600A+ pulsed currents with minimal voltage drop and stable EMI shielding.

• Medical Electronics
  Used in MRI scanners and X-ray machines, where EMI shielding >60 dB and high-purity signal transfer are mission-critical.

Maintenance Guidelines for Long-Term Reliability

Maintaining silver plated copper bus bars is essential to preserve performance:

• Cleaning Protocols
  Clean with 99.9% isopropyl alcohol and lint-free wipes. Avoid abrasive tools or ammonia-based cleaners that accelerate tarnishing.

• Surface Inspection
  Regularly check for silver sulfide tarnish (<5% coverage="" is="" acceptable="">

• Connection Torque Check
  Maintain fastener torque (e.g., 20–30 N·m for M10 bolts). Recheck connections every 6 months to avoid performance degradation.

• Contact Resistance Testing
  Use micro-ohmmeters with 100A DC test current; resistance should remain below 15 μΩ per joint.

• Environmental Protection
  In corrosive areas (coastal/industrial), apply NO-OX-ID A-Special conductive grease, which reduces sulfurization by up to 90%.

• Replating Requirements
  If silver wear exceeds 70% of the original thickness (verify using XRF gauges), arrange professional replating services.

• Thermal Inspection
  Use infrared cameras to monitor hot spots. Any area >10°C above ambient may indicate a potential failure point.

Storage Recommendations for Silver Plated Copper Busbars

Proper storage can significantly extend product shelf life:

• Packaging
  Wrap in VCI paper (50–100 g/m²) to prevent oxidation and silver tarnish.

• Temperature & Humidity
  Store at 15–30°C and<60% rh.="" use="" desiccant="" bags="">

• Handling & Stock Rotation
  Separate bars using 3–5mm PE foam spacers to avoid dents or scratches. Adopt FIFO (First In, First Out) inventory control with max storage of 12 months.

Why Choose Silver Plated Copper Bus Bars?

• Unmatched electrical and thermal conductivity

• Superior anti-corrosion properties

• Reliable performance in harsh and high-frequency environments

• Available in customizable sizes, thicknesses, and plating depths

• Conforms to global electrical and military standards

Whether for mission-critical aerospace, clean energy infrastructure, or industrial automation, our silver plated copper bus bars deliver high-reliability performance where it matters most.

Frequently Asked Questions

Q1: What is the advantage of using silver plated copper bus bars over bare copper ones?
A1: Silver plated copper bus bars offer superior corrosion resistance, lower surface resistivity, and better high-frequency performance compared to bare copper, making them ideal for long-term and high-reliability applications.

Q2: Can I customize the size and plating thickness of the bus bar?
A2: Yes, we offer full customization including width, thickness, length, hole patterns, and silver plating thickness (from 5 μm to 50 μm).

Q3: Do you provide technical certifications with your products?
A3: Absolutely. We provide RoHS, XRF plating thickness reports, micro-ohm contact resistance test data, and material composition analysis if required.

Q4: How should I clean and maintain silver plated copper bus bars?
A4: Use 99.9% isopropyl alcohol and a lint-free cloth. Avoid abrasive cleaners and ammonia-based products. For tarnish, use 0.5–1 μm diamond paste or a mild citric acid solution.

Q5: What is the shelf life of silver plated bus bars?
A5: Up to 12 months in proper packaging and storage conditions (VCI wrap,<60% rh="">

Q6: Are these bus bars suitable for high-frequency applications?
A6: Yes, silver has a skin depth of 2.1 μm at 1 GHz, making even thinly plated bars highly effective in RF and telecom systems.
