Flexible Copper Busbar

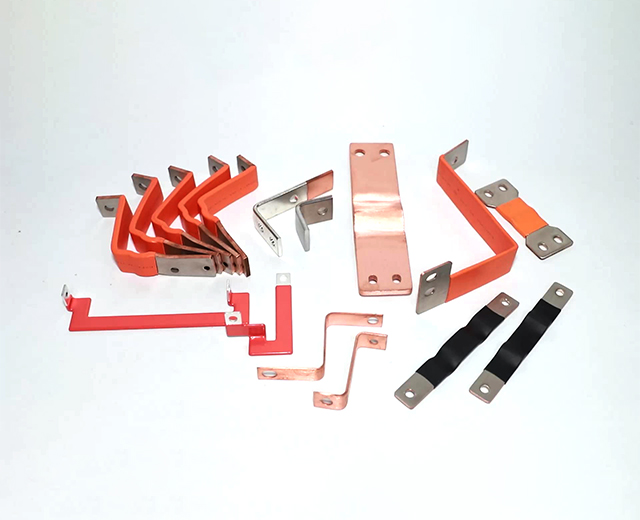

Copper Bus Bar Connectors play a critical role in modern electrical power systems. Designed to provide efficient current conduction, improved heat management, and stable mechanical performance, these connectors are widely used in industrial power control, renewable energy systems, automotive electronics, and battery storage applications. With advanced manufacturing capabilities and high-purity copper materials, our connectors—including flexible braided Copper Busbar, busbar flexible connectors, Flexible Busbar connectors, battery bus bar connector, ground bus bar connector, 12V Bus Bar, Isolated Bus Bar, and more—offer unmatched reliability for high-current environments.
Copper bus bar connectors are conductive components used to connect power distribution equipment, electrical panels, battery modules, switchgear, and grounding systems. Compared to traditional cables, copper bus bars offer significantly higher current-carrying capacity, reduced resistance, and superior heat dissipation. They serve as essential parts in Bus Bar Electric systems, offering stability and long-term performance.
Depending on system requirements, our connectors are available in solid bus bar, Flexible Busbar copper, tin coated copper busbar, copper tinned busbar, and nickel busbar versions.
Material Selection
High-purity electrolytic copper is chosen for maximum conductivity. Options include tinned, bare, or nickel-plated copper.
Cutting & Shaping
The copper bus bars are precision-cut to the required thickness and width using CNC shearing or laser cutting.
Punching & Forming
Holes, slots, and customized bending shapes are created depending on installation needs. This ensures compatibility with bus bar connectors, terminals, and electrical units.
Lamination or Braiding (Flexible Types)
For flexible braided copper busbar or laminated connectors, multiple copper foils or braids are layered and fused to improve flexibility and vibration resistance.
Surface Treatment
Tin Coated Copper Busbar for oxidation prevention
Copper Tinned Busbar for improved corrosion resistance
Nickel Busbar for high-temperature and harsh environments
Insulation coating is applied for Isolated Bus Bar applications
Quality Inspection
All connectors undergo electrical resistance testing, dimensional checks, bending testing, and thermal evaluation.
Our copper bus bar connectors offer outstanding current-carrying efficiency compared to ordinary wires or inferior copper products.
Our busbar flexible connectors, Flexible Busbar connectors, and flexible braided copper busbar are specially designed to withstand continuous vibration, thermal expansion, and structural movement.
Copper bus bars dissipate heat more effectively than cables, enabling long-term stability under heavy loads—ideal for 600 Amp Copper Bus Bar applications.
Choose from Tin Coated Copper Busbar, Copper Tinned Busbar, or Nickel Busbar for harsh environments.
We support customized thickness, width, bending shapes, hole patterns, insulation types, and surface coatings.
Compared with cheap suppliers, we use 99.9% purity electrolytic copper and precision surface finishing to ensure long service life.
| Material Type | Features | Best For |
|---|---|---|
| Bare Copper Bus Bar | Highest conductivity | Indoor panels, battery systems |
| Tin Coated Copper Busbar / Copper Tinned Busbar | Anti-corrosion, anti-oxidation | Marine, outdoor, renewable energy |
| Nickel Busbar | High-temperature resistance | EV battery systems, industrial automation |
| Flexible Braided Copper Busbar | High flexibility, vibration resistance | EVs, dynamic equipment |
| Flexible Busbar Copper (Laminated) | Compact, durable, high current | Power control systems |
| Solid Bus Bar | Heavy-duty stability | High-current distribution |
| Parameter | Range / Option |
|---|---|
| Thickness | 3mm – 20mm (custom available) |
| Width | 10mm – 150mm (custom available) |
| Length | Customizable |
| Current Capacity | 50A – 600A and above |
| Surface Treatment | Tin coated, nickel plated, bare copper |
| Type | Solid, laminated, braided, isolated |
| Hole Size & Pattern | Fully customizable |
| Voltage Range | Supports low voltage (e.g., 12V Bus Bar) to high power systems |
We support OEM/ODM specifications based on drawings and technical requirements.
Our bus bar connectors serve multiple industries:
Battery energy storage systems (BESS)
Battery bus bar connector solutions for lithium batteries, EVs, solar storage
Automotive & New Energy Vehicles
Flexible and nickel-coated busbars
Electrical Panels & Switchgear
Bus Bar Electric, Electrical Ground Bus Bar, ground bus bar connector
Industrial Power Distribution
Control cabinets, transformers, inverters
Solar & Wind Power Systems
Telecommunications & Data Centers
Marine & Railway Systems
Ensure correct torque when fastening the bus bar connectors
Use appropriate insulation spacers when installing Isolated Bus Bar
Keep surfaces clean before assembly to reduce resistance
Use proper bending tools (avoid manual bending for thick copper bars)
Regularly inspect for corrosion or discoloration
Tighten loose bolts to prevent overheating
Keep connectors clean and dry
Replace aged or worn flexible busbar connectors to prevent fatigue failure
Many suppliers use recycled copper; we guarantee high-conductivity pure copper.
Ensuring precise dimensions, smooth edges, and perfect fit.
From 600 Amp Copper Bus Bar to 12V Bus Bar, from flexible to solid structures—everything can be customized.
Tin, nickel, and silver plating with uniform thickness and strong adhesion.
Bulk production and international logistics support.
Ensuring stable performance for long-term industrial use.
Q1: Are your copper bus bar connectors customizable?
Yes. We support full customization including size, coating, bending shape, hole pattern, and current rating.
Q2: What is the difference between solid bus bar and flexible busbar copper?
Solid Bus Bar: Best for high-current, fixed installations.
Flexible Busbar Copper: Absorbs vibration, reduces stress, suitable for EVs and dynamic applications.
Q3: Do you offer tin-coated or nickel-coated options?
Yes, we offer Tin Coated Copper Busbar, Copper Tinned Busbar, and Nickel Busbar depending on corrosion resistance or temperature requirements.
Q4: Can these connectors be used for grounding?
Absolutely. Our ground bus bar connector and Electrical Ground Bus Bar products are designed for stable grounding performance.
Q5: What is the current capacity of your bus bars?
We offer solutions from 50A to 600 Amp Copper Bus Bar and can customize beyond this range.
