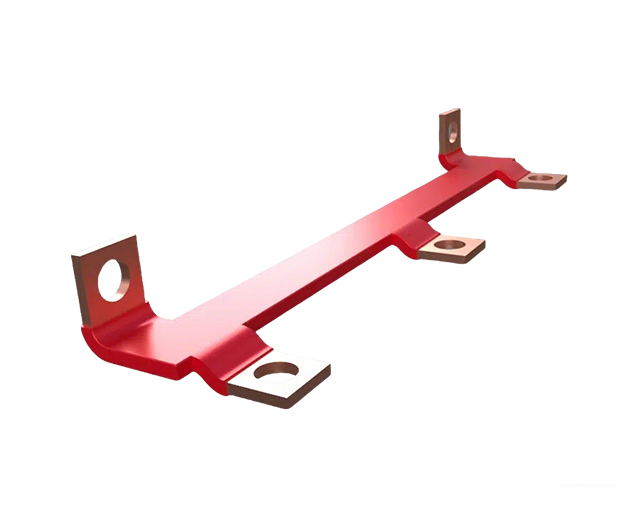

Custom Bus Bar

What Is a Custom Bus Bar?

A custom bus bar is a specially engineered electrical conductor designed to meet the unique requirements of industrial, automotive, and renewable energy applications. Unlike standard busbars, a custom Copper Busbar can be tailored in shape, size, thickness, and current-carrying capacity for maximum efficiency and safety.

We offer a complete range of Custom Busbar, Custom Bus Bars, Custom Copper Busbar, Customized Copper Busbar for EV, and Custom Copper Busbar Assemblies, providing reliable, high-performance power distribution solutions for demanding projects.

Manufacturing Process (Principle)

The production of a custom bus bar follows precise engineering and quality control steps:

1. Design & Specification: Project-specific requirements are analyzed, including voltage, current, and spatial constraints.

2. Material Selection: High-purity copper is selected to ensure excellent electrical conductivity.

3. Cutting & Shaping: Copper busbars are cut, bent, and punched to exact specifications.

4. Surface Treatment: Busbars are polished and optionally plated (tin, nickel) to prevent corrosion and improve conductivity.

5. Insulation & Assembly: Optional insulation and integration into Custom Copper Busbar Assemblies enhance safety and simplify installation.

6. Quality Testing: Electrical, mechanical, and insulation tests ensure each busbar meets international standards.

Advantages and Features

Compared to standard busbars, our custom bus bar solutions provide:

• High Efficiency: Optimized copper design reduces voltage drop and energy loss.

• Safety & Reliability: Proper insulation and precision assembly prevent short circuits and overheating.

• Flexible Design: Our flexible busbar solutions allow installation in compact or complex spaces.

• Custom Solutions: Fully tailored for EV battery systems, industrial switchgear, and renewable energy projects.

• Durability: Corrosion-resistant surface treatment extends service life.

• Ready-to-Install Assemblies: Custom Copper Busbar Assemblies simplify installation and reduce labor costs.

• Competitive Advantage: As leading flexible busbar manufacturers in China, we provide superior quality at competitive prices.

Materials Selection

• Conductor: High-purity copper (standard or oxygen-free for high-performance applications)

• Surface Treatment: Tin-plated, nickel-plated, or bare copper

• Insulation (Optional): PVC, PET, or heat-shrink tubing for enhanced electrical safety

• Support: Busbar support insulators for mechanical stability

Specifications

Applications

Custom Bus Bars are suitable for:

• EV battery systems and charging stations (Customized Copper Busbar for EV)

• Switchgear and industrial control panels

• Renewable energy systems (solar, wind)

• Automation machinery and high-current industrial equipment

• High-power distribution applications requiring tailored solutions

Installation and Maintenance

• Verify compatibility with system voltage and current requirements.

• Use proper terminals and connectors for safe and stable connections.

• Avoid sharp bending for rigid busbars; flexible busbar allows installation in tight spaces.

• Regularly inspect for insulation damage, corrosion, or loose connections.

• Clean with a dry cloth; avoid chemicals that may degrade insulation.

Why Choose Us?

• High-Quality Materials: Premium copper ensures maximum conductivity and durability.

• Custom Solutions: Fully engineered custom copper busbar assemblies tailored to your project.

• Flexible Options: Flexible busbar solutions simplify complex installations.

• Professional Support: Expert guidance on design, installation, and maintenance.

• Competitive Pricing: Wholesale supply from leading flexible busbar manufacturers in China.

• Global Supply: Trusted Custom Bus Bar in China supplier with international B2B service.

FAQ

Q1: What is the difference between a standard busbar and a custom bus bar?
A: Standard busbars are pre-set in size and shape, while custom bus bars are designed to your exact specifications including thickness, width, and current capacity.

Q2: Can you supply customized copper busbars for EV applications?
A: Yes, we provide Customized Copper Busbar for EV and ready-to-install Custom Copper Busbar Assemblies.

Q3: What are flexible busbars used for?
A: Flexible busbars allow easy installation in confined spaces while carrying high current efficiently.

Q4: How do I maintain a custom copper busbar assembly?
A: Inspect periodically, clean with a dry cloth, ensure terminals are tight, and avoid bending rigid busbars.

Q5: Can custom busbars be tailored in size and surface treatment?
A: Yes, all dimensions, current ratings, and surface treatments are fully customizable.
