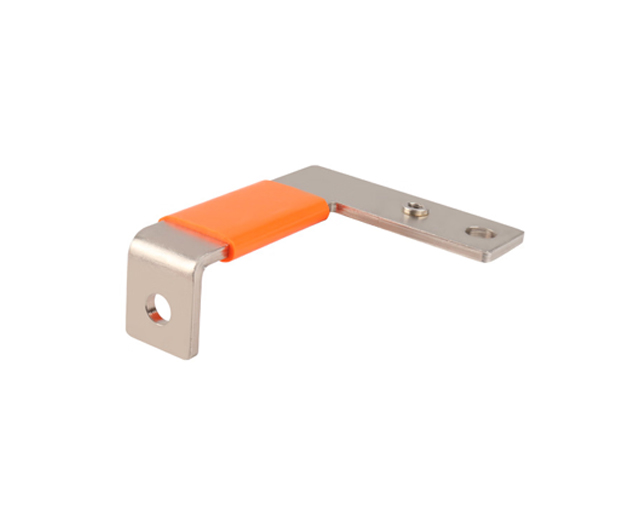

Insulated Bus Bars

What Are Insulated Bus Bars?

Insulated bus bars, also known as insulated busbar or solid insulated busbar, are electrical conductors encapsulated with insulation materials to provide safe, compact, and efficient power distribution. They are widely used in switchgear, battery systems, industrial control panels, and renewable energy applications.
Compared with traditional cable wiring, insulated Copper Busbar, insulated Flexible Busbar, and insulated Aluminum Busbar provide superior electrical conductivity, enhanced mechanical strength, and significantly improved electrical safety.

These products are designed to meet the needs of modern power distribution systems that require lower resistance, higher current capacity, reduced footprint, and improved reliability.

How Insulated Bus Bars Are Made (Manufacturing Principles)

The production process of insulated bus bars involves advanced forming, lamination, and insulation techniques. The typical steps include:

1. Material Preparation

• Select high-conductivity metals: copper, tinned copper, or aluminum

• Determine busbar dimensions according to current requirements

2. Processing & Forming

• CNC punching, cutting, bending, and milling to ensure precise shapes

• For Insulated Flexible Copper Bars, multiple braided copper layers are stacked for maximum flexibility

3. Insulation Coating

• High-temperature extrusion coating

• Epoxy powder coating

• PVC, XLPE, or silicone insulation wrapping
  These processes ensure each Insulated Copper Busbar is fully protected against electrical leakage, oxidation, and short-circuit risks.

4. Quality Testing

• Dielectric strength testing

• Current carrying capacity verification

• Mechanical stress and flexibility tests

• UL/IEC standard compliance checks

Key Advantages of Insulated Bus Bars

Compared with traditional bare busbars or cables, our solid insulated busbar and insulated flexible busbar deliver clear performance advantages:

Higher Safety

• Full insulation eliminates short circuits

• Reduced risk of accidental contact

• Enhanced arc-resistance and heat stability

Improved Current Capacity

• Lower resistance due to high-conductivity metals

• Better heat dissipation than cable bundles

Compact & Space-Saving

• Organized, clean installation

• Ideal for high-density electrical cabinets

Easy Installation

• Pre-formed shapes reduce on-site labor and errors

Better Durability

• Resistant to corrosion, humidity, vibration, and mechanical deformation

Custom Engineering

We offer custom solutions including:
Insulated busbar terminal, Insulated Flexible Copper Bars, Powermat busbar support, color-coded insulation, special shapes, and OEM drawings.

Material Options

We provide a full range of materials based on project requirements:

Copper BusBar Insulated

• OFC copper

• ETP copper

• Tinned copper busbars

• Nickel-plated copper

• Flexible braided copper conductors

Insulated Aluminum Busbar

• Lightweight

• Cost-effective

• Suitable for EV, solar, and UPS applications

Insulated Flexible Busbar

• Laminated or braided flexible copper

• For vibration-heavy or space-limited installations

Technical Specifications (Typical Parameters)

Custom dimensions and OEM engineering drawings are welcome.

Applications of Insulated Bus Bars

Our Insulated Copper Busbar and Solid Insulated Busbar are widely used in:

• Low- and medium-voltage switchgear

• Power distribution units (PDU)

• Industrial control cabinets

• Energy storage systems and battery packs

• UPS systems

• EV charging infrastructure

• Renewable energy systems (solar, wind)

• Data centers

• Marine and railway electrical systems

Installation & Maintenance Tips

Installation Tips

• Ensure proper torque when fastening busbar terminals

• Use correct Powermat busbar support brackets for stable mounting

• Avoid sharp bends that may damage insulation

• Maintain correct phase spacing to avoid overheating

Maintenance Recommendations

• Conduct periodic infrared temperature scans

• Inspect insulation for cracks or discoloration

• Clean dust buildup inside electrical cabinets

• Check for loose connectors or signs of corrosion

Proper installation extends service life and enhances system reliability.

Why Choose Us as Your Insulated Bus Bar Manufacturer?

1. Complete Customization

We specialize in OEM/ODM insulated bus bars, including:

• Insulated Flexible Copper Bars

• Solid Insulated Busbar

• Insulated busbar terminal

• Laminated and braided flexible busbars

2. Advanced Production

• CNC machining

• High-precision lamination

• Automated insulation coating lines

3. Superior Quality Control

• 100% testing before shipment

• UL, IEC, ROHS compliant materials

4. Competitive Pricing

We offer factory-direct pricing with no middleman costs.

5. Fast Lead Time

Extensive production capability ensures timely delivery even for large orders.

6. Global Export Experience

Over 60+ countries served with stable cooperation.

Choosing us means you get higher reliability, higher efficiency, and lower long-term maintenance cost.

FAQ – Insulated Bus Bars

1. What is an insulated bus bar used for?

It distributes electrical power safely and efficiently while preventing electrical leakage, arcing, and short circuits.

2. What is the difference between insulated and non-insulated busbars?

Insulated busbars provide higher safety, compact size, and better environmental protection.

3. Do you offer flexible insulated busbars?

Yes, we supply Insulated Flexible Copper Bars and Insulated Flexible Busbar for applications requiring vibration resistance or compact routing.

4. Can I customize size and color?

Yes. All lengths, shapes, colors, and insulation types can be customized.

5. How long is the delivery time?

Typically 7–20 days depending on order quantity and customization level.

6. Do you support sample orders?

Yes, samples are available for testing before mass production.
