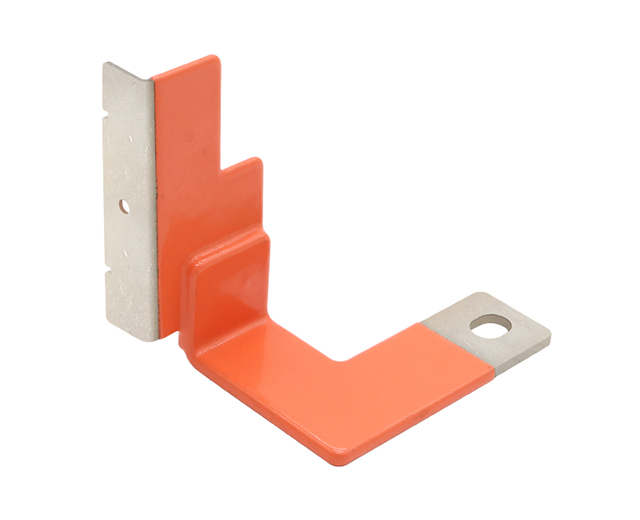

Insulated Busbar

What Is an Insulated Busbar?

An insulated busbar is a type of electrical conductor designed for safe and efficient power distribution. Unlike bare copper or aluminum busbars, insulated bus bars are coated with a durable insulating layer that prevents accidental short circuits, reduces the risk of electric shock, and improves overall system safety. These busbars are widely used in power distribution units, switchgear, electrical panels, and industrial machinery.

Our product range includes solid insulated busbar, insulated copper busbar, Flexible Busbar, and insulated Flexible Busbar, designed to meet various power and safety requirements.

Manufacturing Process (Principle)

The production of insulated busbars involves several key steps:

1. Material Selection: High-conductivity copper or aluminum is selected for optimal electrical performance.

2. Cutting and Shaping: The busbar is cut to precise lengths and shaped according to design requirements.

3. Surface Treatment: The copper busbar undergoes surface polishing and plating (if needed) to enhance conductivity and prevent corrosion.

4. Insulation Application: High-quality insulating materials such as PVC, PET, or heat-shrinkable compounds are applied to the busbar. This forms the protective coating that ensures electrical insulation.

5. Terminal Installation: Insulated busbar terminals are added for safe connection to other electrical components.

6. Quality Testing: Each busbar is tested for insulation resistance, current-carrying capacity, and mechanical durability before shipment.

Advantages and Features

Compared to conventional busbars, our insulated bus bars offer:

• Enhanced Safety: The insulation layer reduces risk of electrical shock and short circuits.

• Flexible Design: Our insulated Flexible Busbar and Flexible Busbar connectors allow easy installation in compact or complex layouts.

• High Conductivity: Made from premium copper, our insulated copper busbar ensures minimal voltage drop and high efficiency.

• Corrosion Resistance: Coated surfaces prevent oxidation and extend service life.

• Customizable Solutions: Available in various thicknesses, widths, and lengths to meet specific project requirements.

• Reliable Performance: Suitable for high-current industrial applications, ensuring stable and consistent power distribution.

Materials Selection

• Conductors: High-purity copper (or aluminum for lightweight applications)

• Insulation: PVC, PET, or heat-shrinkable compounds

• Terminals: Tin-plated or nickel-plated copper for corrosion resistance

• Support: High-strength busbar support insulators for mechanical stability

Specifications

Applications

Our insulated bus bars are ideal for:

• Power distribution panels

• Switchgear and control cabinets

• Electric vehicles (EVs) and battery systems

• Renewable energy systems (solar, wind)

• Industrial machinery and automation

• High-current electrical projects requiring flexible busbars

Installation and Maintenance

• Ensure the busbar is compatible with system voltage and current ratings.

• Use insulated busbar terminals for all connections to prevent accidental contact.

• Avoid sharp bends to maintain mechanical integrity, especially for flexible busbars.

• Regularly inspect for insulation damage or corrosion.

• Clean with a dry cloth; avoid abrasive chemicals that may degrade the insulation.

Why Choose Us?

• High-Quality Materials: We use premium copper and durable insulation for reliable performance.

• Custom Solutions: From rigid insulated bus bars to flexible busbar connectors, we can design to your specifications.

• Professional Support: Our team of engineers ensures proper sizing, installation guidance, and maintenance tips.

• Competitive Pricing: Wholesale supply with superior quality compared to other suppliers.

• Global Supply Capability: Trusted busbar support insulator manufacturer serving industrial and commercial clients worldwide.

FAQ

Q1: What is the difference between a solid insulated busbar and a flexible busbar?
A: A solid insulated busbar is rigid and suitable for fixed installations, while a flexible busbar allows bending and easy installation in confined spaces.

Q2: Can insulated bus bars be customized in size and thickness?
A: Yes, we offer a full range of dimensions, thicknesses, and insulation types to meet specific project requirements.

Q3: Are insulated copper busbars suitable for high-current applications?
A: Absolutely. Our insulated copper busbar provides excellent conductivity, corrosion resistance, and high-current capacity.

Q4: How do I maintain an insulated busbar?
A: Inspect periodically for insulation damage, clean with a dry cloth, and ensure terminals are properly tightened.

Q5: Can you supply flexible busbar connectors for my project?
A: Yes, we provide high-quality flexible busbar connectors compatible with our insulated busbars for seamless installation.
