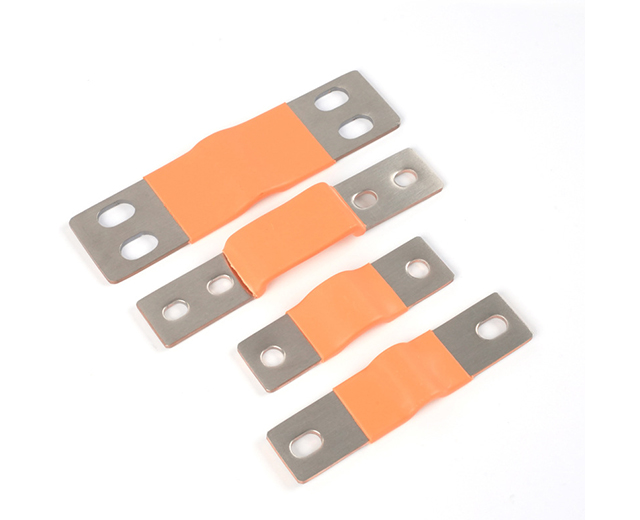

Nickel Plated Copper Strap

What Is a Nickel Plated Copper Strap?

A nickel plated copper strap is a flat conductive strip made from copper and coated with a layer of nickel. The copper base provides excellent electrical conductivity, while the nickel plating protects the surface from corrosion, oxidation, and environmental damage.

This combination makes nickel plated copper strips highly suitable for electrical connections that must operate in harsh conditions or high temperatures.

These conductive straps are often used as:

• Copper bus bar straps

• Electrical connector straps

• Battery copper straps

• Grounding copper straps

In many electrical systems, nickel plated copper straps function as connectors between components, forming stable electrical bus bar connections.

Manufacturing Process of Nickel Plated Copper Straps

Producing a high-quality nickel plated copper strap involves several precise manufacturing steps.

Material Cutting

The manufacturing process begins with cutting copper sheets or strips into the required size. Methods commonly used include:

• CNC machining

• Laser cutting

• Precision stamping

These processes ensure that the copper strap connector meets strict dimensional requirements.

Forming and Shaping

After cutting, the copper pieces may be bent or shaped according to the required design. This step is particularly important for custom copper strap manufacturing used in specialized equipment.

Nickel Plating

The copper strap is then plated with nickel using an electroplating process. This forms a protective surface layer that enhances corrosion resistance.

Drilling and Finishing

Mounting holes are drilled into the nickel plated copper strip to allow easy installation in electrical equipment. Edges are also polished to prevent sharp surfaces.

Quality Inspection

Finally, manufacturers test the nickel plated copper strap to ensure it meets electrical conductivity, thickness, and durability requirements.

Advantages of Nickel Plated Copper Strap

Using nickel plated copper straps offers several advantages compared with uncoated copper connectors.

Excellent Electrical Conductivity

Copper has one of the highest electrical conductivities among metals. This allows nickel plated copper straps to function effectively as high current copper straps in power systems.

Strong Corrosion Resistance

Nickel plating protects the copper surface from corrosion and environmental damage. This improves the lifespan of copper bus bar straps used in humid or chemically exposed environments.

High Mechanical Strength

The nickel layer increases the hardness of the copper surface, improving resistance to wear and mechanical stress.

Long Service Life

Because the plating protects the copper from oxidation, nickel plated copper connector straps can maintain stable performance over long periods.

Improved Electrical Contact

Nickel plating helps maintain stable contact surfaces, ensuring reliable electrical bus bar connections.

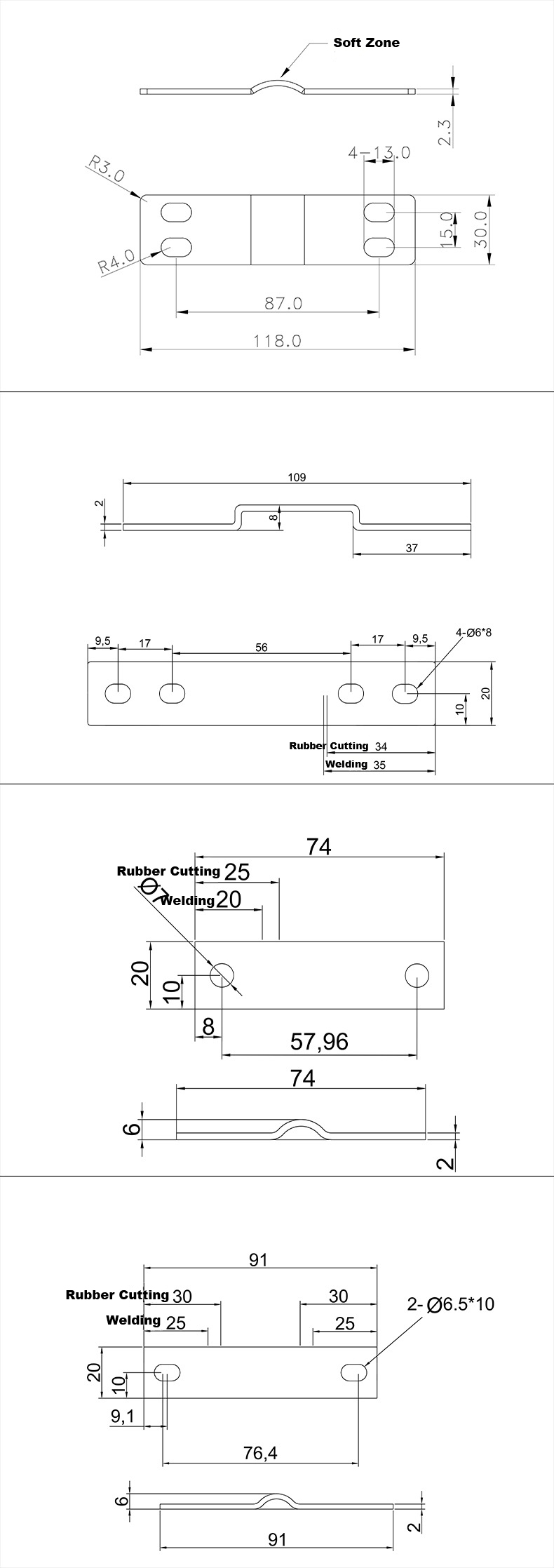

Product Parameters

Applications

• Battery Packs: Widely used in lithium-ion Battery Pack Busbars, connecting individual battery cells and ensuring stable current transmission for various applications such as energy storage and electric vehicles.

• Electric Vehicles (EVs): As Electric Vehicle Battery Connectors, these Nickel Plated Copper Busbars are crucial for efficient and reliable power transfer within electric vehicle battery systems.

• Energy Storage Systems: In industrial-scale energy storage systems, these copper straps facilitate safe and efficient battery connections.

• Solar Energy Storage: Battery Busbars made from nickel-plated copper are also used in solar energy storage systems to ensure optimal energy storage and transfer.

• Industrial Batteries: For large-scale industrial batteries, Nickel Plated Battery Busbars offer enhanced durability and reliable performance.

Nickel Plated Copper Strap vs Bare Copper Strap

Although bare copper straps are also widely used, nickel plated copper straps provide additional protection and durability.

Bare copper may oxidize over time, which can affect electrical contact quality. In contrast, nickel plated copper strips resist oxidation and maintain stable electrical conductivity.

For environments where corrosion resistance and long-term reliability are critical, nickel plated copper straps are usually the preferred option.

Choosing the Right Nickel Plated Copper Strap

When selecting a nickel plated copper strap, several factors should be considered:

• Current carrying capacity

• Copper thickness and width

• Nickel plating thickness

• Installation environment

• Connection type

Working with an experienced nickel plated copper strap supplier ensures that the product meets the specific requirements of your electrical system.

Many manufacturers also offer custom copper strap manufacturing services to produce connectors designed for specialized applications.

Frequently Asked Questions (FAQ)

1. Why choose Nickel Plated Copper Straps over pure copper?
Nickel Plated Copper provides superior corrosion resistance compared to pure copper, making it more durable, especially in humid or chemically harsh environments. The nickel layer prevents oxidation and corrosion, extending the lifespan of the busbar and ensuring stable performance in battery connections.

2. Will the nickel plating affect the electrical conductivity?
While the nickel plating adds a thin layer over the copper, it does not significantly reduce the conductivity of the copper. The plating process is designed to be thin enough to preserve the copper's excellent electrical conductivity while enhancing its durability.

3. Can you customize Nickel Plated Copper Busbars to fit my project?
Yes, we offer full customization options for Custom Copper Straps for Battery Packs. Whether you need specific sizes, shapes, or thicknesses for your Battery Connection Bar or Lithium-ion Battery Busbar, we can tailor the product to meet your exact requirements.

4. What is the operating temperature range of Nickel Plated Copper Busbars?
Nickel Plated Copper Straps are designed to function within a temperature range of -40℃ to 150℃, making them suitable for a variety of environments, including high-temperature applications in electric vehicles and energy storage systems.

5. How resistant are these busbars to corrosion?
The Nickel Plated Copper Strap offers excellent corrosion resistance, protecting the copper from environmental elements such as moisture, salt, and chemicals. This makes it ideal for long-term use in challenging conditions, ensuring the longevity of the electrical connections in Battery Packs and Battery Busbars.
