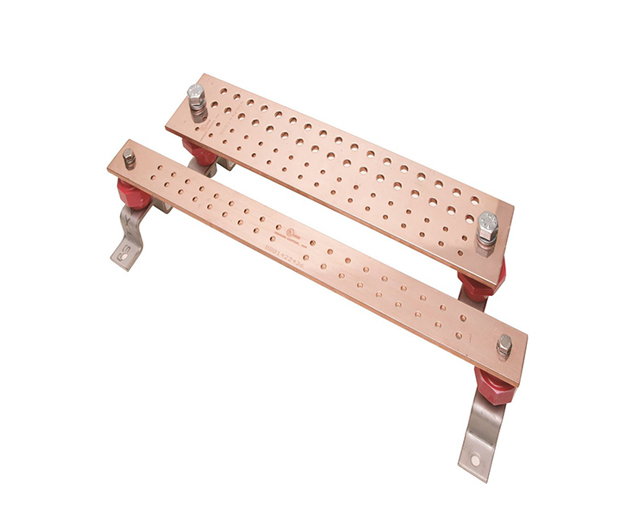

Powerbar Busbar

A Powerbar Busbar is a high-performance electrical conductor system engineered to efficiently distribute large amounts of electrical power within switchgear, power distribution cabinets, electrical panels, and industrial systems. Constructed from high-purity copper or copper alloys, it provides superior conductivity, low voltage drop, and long-term reliability in demanding electrical environments.

Designed with robust insulation coatings such as PVC, heat shrink tubing, or epoxy resin, Powerbar Busbars ensure exceptional safety, preventing short circuits and improving fire resistance. They are widely adopted in industrial automation, renewable energy plants, electric vehicle (EV) charging infrastructure, and data center power systems, where efficiency and stability are critical.

How Powerbar Busbars Are Manufactured

The production of a Powerbar Busbar involves precise engineering and strict quality control to meet international electrical safety standards.

1. Material Preparation
High-quality oxygen-free copper or tinned copper is selected to guarantee excellent conductivity and corrosion resistance.

2. Cutting and Forming
Advanced CNC machining technology is used to cut, punch, and bend copper sheets into precise dimensions, ensuring perfect alignment and uniform cross-sections.

3. Surface Treatment
The copper is then tin-plated, nickel-plated, or silver-coated to enhance oxidation resistance and reduce electrical contact resistance.

4. Insulation Application
A protective layer such as PVC insulation, heat shrink tubing, or silicone coating is applied to ensure dielectric strength, fire resistance, and mechanical durability.

5. Quality Inspection
Each Powerbar Busbar undergoes electrical resistance, insulation voltage, temperature rise, and mechanical strength tests to meet UL, RoHS, and IEC standards.

Powerbar Busbar Is Used in Application Fields

Powerbar Busbars serve critical roles in many sectors, including:

• Industrial Power Distribution Cabinets

• Renewable Energy Systems (Solar, Wind)

• Electric Vehicle (EV) Charging Stations

• Data Centers and Telecommunication Hubs

• Heavy Machinery and Manufacturing Plants

• Energy Storage Systems (ESS)

Key Characteristics of G and N Fortune Limited Powerbar Busbars

G and N Fortune Limited designs and manufactures high-precision Powerbar Busbars optimized for industrial and renewable applications.

• Exceptional Electrical Conductivity — Made from high-purity copper for minimal power loss.

• Flame-Retardant Insulation — Certified PVC or heat-shrink coatings provide superior fire safety.

• High Mechanical Strength — Excellent resistance to vibration, bending, and thermal cycling.

• Customizable Designs — Available in various widths, thicknesses, and hole configurations.

• Excellent Thermal Management — Supports high current densities and dissipates heat effectively.

• Global Compliance — Fully meets UL, RoHS, and IEC standards for safety and environmental protection.

Design Considerations for Powerbar Busbars

A well-designed Powerbar Busbar ensures efficiency, safety, and long service life.
Key design parameters include:

1. Current-Carrying Capacity — Determining the optimal copper cross-section based on load requirements.

2. Hole Positioning — Designing mounting and terminal holes for easy integration with switchgear.

3. Insulation Selection — Choosing proper insulation based on voltage, temperature, and environmental exposure.

4. Thermal Expansion Compensation — Ensuring structural flexibility to prevent stress under temperature variations.

5. Installation Flexibility — Supporting both rigid and flexible configurations as per the system layout.

How To Customize Powerbar Busbars

G and N Fortune Limited provides full customization services including:

• Custom lengths, widths, and thicknesses.

• Precise CNC-machined hole patterns and terminal shapes.

• Choice of insulation: PVC, heat shrink tubing, or silicone sleeves.

• Surface finishes: tin plating, nickel plating, or bare copper.

• Support for prototypes and mass production with strict quality control.

Why Choose G and N Fortune Limited Powerbar Busbars?

Choosing G and N Fortune Limited means:

15+ years of expertise in manufacturing high-quality Powerbar Busbars
Full compliance with international UL, RoHS, and IEC standards
Advanced CNC machining and surface treatment technologies
Flexible customization to meet diverse industrial requirements
Rigorous quality control and fast delivery
Competitive pricing and global shipping support

Contact G and N Fortune Limited now to get a tailored quote for your Powerbar Busbar needs!

FAQ – Powerbar Busbar

1. What materials are used in Powerbar Busbars?
Oxygen-free copper, tinned copper, or copper alloy conductors with PVC or heat shrink insulation.

2. What are common applications?
Industrial power systems, renewable energy, EV charging, data centers, and manufacturing plants.

3. Can Powerbar Busbars be customized?
Yes — we provide custom dimensions, hole layouts, insulation types, and surface finishes.

4. What current ratings are available?
Up to several thousand amperes, depending on cross-sectional area and cooling design.

5. Are they certified?
Yes, G and N Fortune Limited Powerbar Busbars comply with UL, RoHS, and IEC standards.

6. What is the production lead time?
Samples: 5–7 days; Mass orders: 10–15 working days depending on complexity.

7. How to install Powerbar Busbars safely?
Ensure proper alignment, avoid sharp bends, torque fasteners correctly, and protect insulation during installation.
