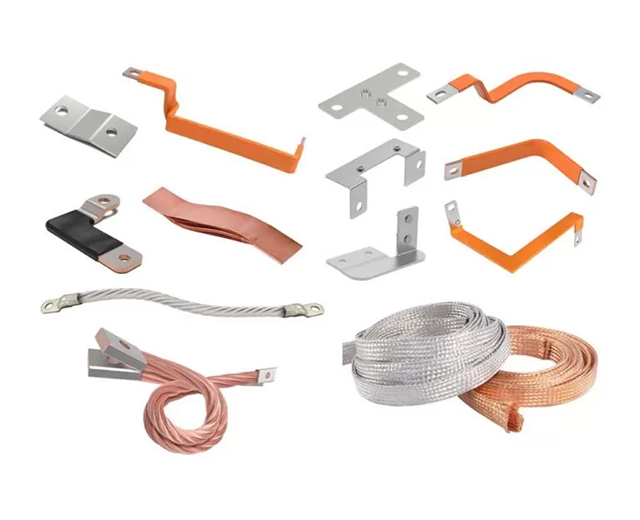

What Is Busbar and Its Types?

When people search for what is busbar and its types, they are usually looking for a clear explanation of what a busbar is, what does a busbar do, and how different busbar types are used in electrical systems. Busbars are essential components in modern electrical engineering, widely applied in power distribution, battery systems, and industrial equipment.

This article explains what is busbar in electrical systems, what is a busbar used for, and introduces the most common busbar types, while naturally integrating relevant keywords to match real user search intent.

1. What Is Busbar in Electrical Systems?

What is busbar?
A busbar is a rigid or flexible electrical conductor, typically made from copper or aluminum, used to carry, collect, and distribute electrical power within a system.

In electrical engineering, what is busbar in electrical applications refers to a conductor designed to handle high current with low resistance, offering better efficiency and safety than traditional wiring.

2. What Does a Busbar Do?

Many users ask what does a busbar do because it plays several key roles in an electrical system:

• Distributes electrical power from a main source to multiple circuits

• Carries high current safely and efficiently

• Connects electrical components such as breakers, batteries, and inverters

• Reduces wiring complexity and improves system reliability

In short, a busbar acts as the central power distribution pathway.

3. What Is a Busbar Used For?

If you are searching what is a busbar used for or what is busbar used for, the most common applications include:

• Power distribution boards and switchgear

• Consumer units and electrical panels

• Battery systems and energy storage (Battery Bus Bar)

• Electric vehicles and charging equipment

• Industrial machinery and control systems

These applications require stable current flow, compact design, and high safety standards.

4. How to Use Busbar in Electrical Systems

Understanding how to use busbar helps ensure proper electrical performance:

1. Determine system voltage and current requirements

2. Select the correct material (copper or aluminum)

3. Choose the appropriate busbar type (rigid or flexible)

4. Apply suitable surface treatment or insulation

5. Install with proper mechanical support and torque control

Correct busbar usage improves efficiency and reduces the risk of electrical faults.

5. Types of Busbars

5.1 Types of Busbars by Material

Aluminium Busbar

An aluminium busbar is widely used in large-scale electrical systems due to:

• Lightweight construction

• Lower material cost

• Good conductivity-to-weight ratio

Common in substations and industrial power distribution.

Copper Busbar

Copper busbars offer:

• Higher electrical conductivity

• Better thermal performance

• Compact design

Copper is often used in custom busbars, battery systems, and precision electrical equipment.

5.2 Types of Busbars by Structure

Flexible Busbar

A flexible busbar is designed to absorb vibration and thermal expansion, reducing mechanical stress.

Flexible Copper Busbar

A flexible copper busbar combines high conductivity with flexibility, making it ideal for:

• Battery modules

• EV power systems

• Inverters and power electronics

5.3 Types of Busbars by Surface Treatment

Tin Plated Copper Bus Bar

A tin plated copper bus bar:

• Prevents oxidation

• Improves solderability

• Reduces contact resistance

Common in general electrical and battery applications.

Nickel Plated Copper Bus Bar

A nickel plated copper bus bar provides:

• Excellent corrosion resistance

• Stability in high-temperature environments

Used in harsh industrial or outdoor electrical systems.

Silver Plated Busbar

A silver plated busbar offers:

• The lowest contact resistance

• Superior electrical performance

A silver plated copper bus bar is typically used in high-end switchgear, aerospace, and precision electrical equipment.

5.4 Types of Busbars by Application

Battery Bus Bar

A battery bus bar connects individual battery cells or modules, ensuring:

• Even current distribution

• Reduced energy loss

• Improved battery safety

Custom Busbars

Custom busbars are designed for specific layouts and electrical requirements, featuring:

• Custom shapes and sizes

• Multiple connection points

• Specialized insulation or plating

Widely used in EV systems, energy storage, and compact electrical assemblies.

6. Busbar vs Electrical Wire

Understanding what is busbar and its types also includes comparing busbars with traditional wiring:

This comparison explains why busbars are preferred in modern electrical systems.

7. Why Busbars Are Essential in Electrical Systems

To summarize:

• What is busbar? A conductor for efficient power distribution

• What does a busbar do? Carries and distributes electrical current

• What is a busbar used for? Power distribution, battery connections, and industrial applications

From aluminium busbar to flexible copper busbar, battery bus bar, and various plated copper bus bars, busbars play a vital role in safe and efficient electrical design.

What is busbar and its types?
A busbar is a fundamental electrical component used to distribute power, and its types vary by material, structure, surface treatment, and application.
