What Is Busbar in Electrical System?

When people search what is busbar in electrical system, they are usually looking to understand the purpose, function, and types of busbars in modern electrical installations. A busbar is a critical component in any electrical system, ensuring safe, efficient, and reliable distribution of electrical power. In this article, we will explain what is busbar, what does a busbar do, what is a busbar used for, and highlight its main types and applications.

1. What Is Busbar in Electrical System?

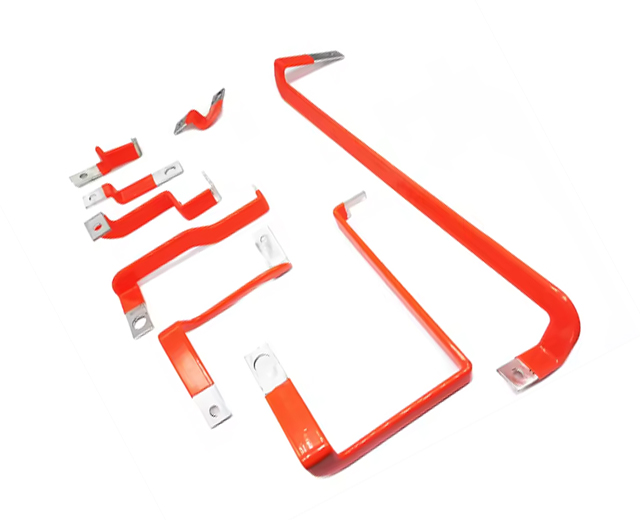

A busbar is a rigid or flexible conductor, usually made from copper or aluminum, designed to carry large currents with low resistance. It serves as a central distribution point for electricity in consumer units, switchgear, distribution boards, battery systems, and industrial electrical systems.

In simple terms, what is busbar in electrical: it is the “main pathway” for electrical power that connects the main power supply to multiple circuits, devices, or equipment efficiently and safely.

2. What Does a Busbar Do?

Understanding what does a busbar do is essential to appreciating its role:

• Distributes power from the main source to multiple circuits

• Connects electrical components, such as circuit breakers (MCB, MCCB, RCBO), inverters, and batteries

• Carries high current safely with low resistance

• Reduces wiring complexity, replacing multiple wires and connectors

• Improves safety and reliability in electrical systems

A busbar is the backbone of modern electrical distribution.

3. What Is a Busbar Used For?

Many users also search what is a busbar used for or what is busbar used for. Typical applications include:

• Consumer units and distribution boards in residential and commercial buildings

• Industrial switchgear and motor control centers

• Battery Bus Bar systems for energy storage and electric vehicles

• High-current applications in power electronics and renewable energy systems

Busbars ensure that power is evenly distributed, efficiently transmitted, and safely connected.

4. How to Use Busbar in Electrical Systems

Understanding how to use busbar is important for safety and performance:

1. Select the appropriate material (copper or aluminum) based on current and system requirements

2. Determine the suitable type of busbar (rigid, flexible, laminated, or plated)

3. Apply proper insulation or plating (tin, nickel, or silver) to improve durability and reduce resistance

4. Install securely with proper torque and mechanical support

5. Connect to breakers, devices, or battery terminals according to layout

Correct usage ensures efficient power flow, reduced heat, and improved system lifespan.

5. Types of Busbars in Electrical Systems

Busbars are categorized by material, structure, plating, and application:

5.1 By Material

• Copper Busbar – High conductivity, stable, widely used in industrial and residential systems

• Aluminium Busbar – Lightweight, cost-effective, common in large-scale distribution systems

5.2 By Structure

• Rigid Busbar – Solid, fixed design for high-current applications

• Flexible Busbar / Flexible Copper Busbar – Can bend to absorb vibration and thermal expansion, often used in batteries and EVs

• Laminated Busbar – Multi-layer design with insulation, low inductance, high-power electronics

5.3 By Plating / Surface Treatment

• Tin Plated Copper Bus Bar – Corrosion resistant, easy to solder

• Nickel Plated Copper Bus Bar – Corrosion and high-temperature resistant

• Silver Plated Busbar / Silver Plated Copper Bus Bar – Lowest contact resistance, used in high-end systems

5.4 By Application

• Battery Bus Bar – Connects battery cells or modules in series or parallel

• Custom Busbars – Designed for specific layouts, voltages, or currents

6. Advantages of Using Busbars

• High current capacity with low energy loss

• Compact and organized wiring for distribution boards and switchgear

• Improved electrical safety compared to traditional wiring

• Versatile applications in industrial, residential, and renewable energy systems

7. Busbar vs Electrical Wire

Busbars are the preferred choice for modern electrical systems requiring safe, efficient, and reliable power distribution.

8. Final Summary

What is busbar in electrical system?
A busbar is a conductor that distributes electricity efficiently and safely, used in consumer units, industrial switchgear, battery systems, and high-current applications. Understanding what does a busbar do, what is a busbar used for, and its types (copper, aluminum, flexible, plated, battery, and custom busbars) is essential for designing safe and reliable electrical systems.
