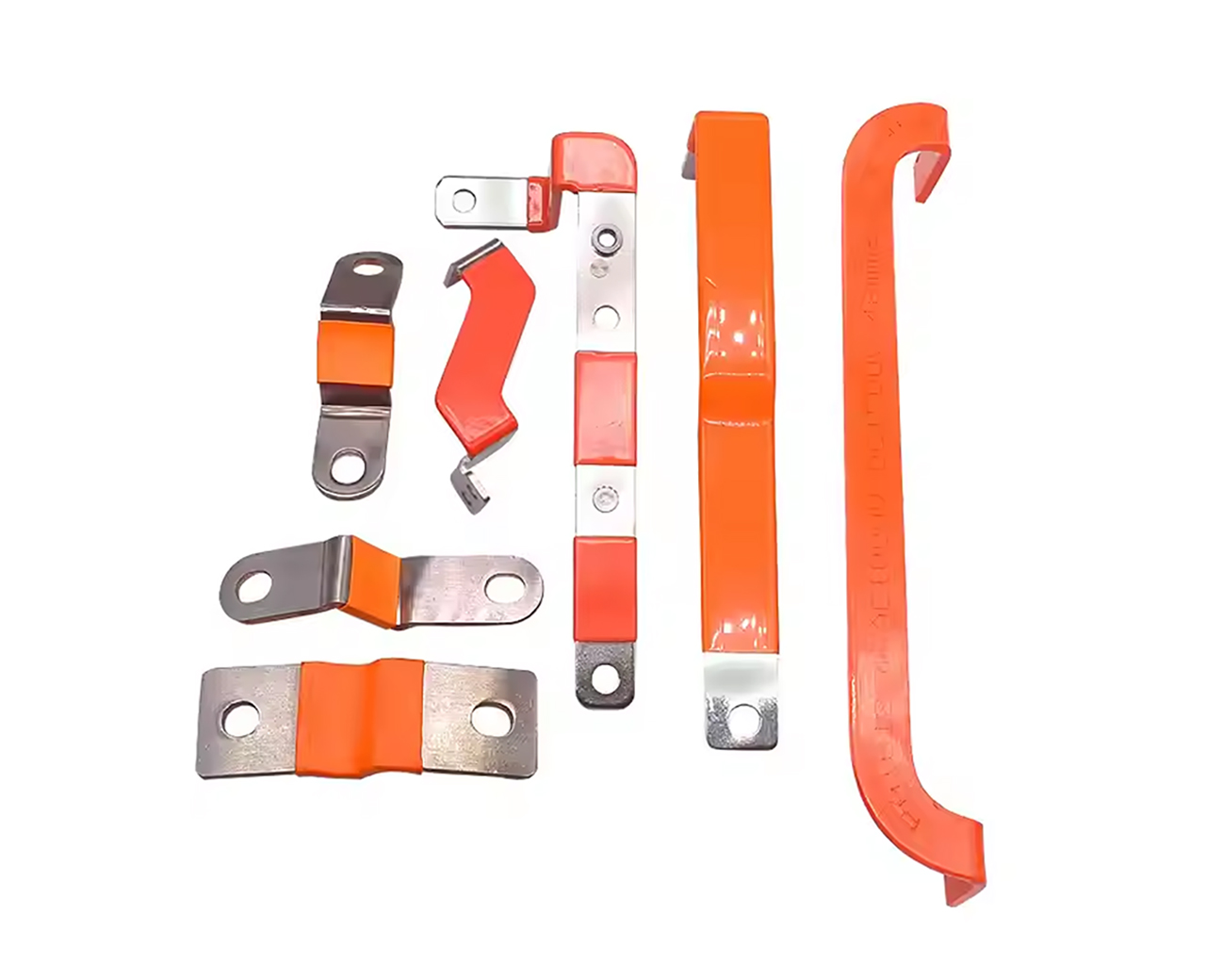

High-Performance Battery Pack Connectors: Features, Applications, and Maintenance

High-Performance Battery Pack Connectors are critical components in modern energy storage and power delivery systems. These connectors are designed to ensure efficient, reliable, and safe electrical connections between battery cells, modules, or packs. They play a vital role in electric vehicles (EVs), renewable energy storage, industrial equipment, and consumer electronics. This article explores their key features, applications, and maintenance practices.

Key Features of High-Performance Battery Pack Connectors

1. High Current-Carrying Capacity

High-performance connectors are engineered to handle substantial current loads, typically ranging from 50A to 600A, with some specialized models supporting up to 1000A. This ensures minimal power loss (<1% voltage drop) during transmission, making them ideal for high-power applications like EVs and grid storage.

2. Low Contact Resistance

Premium connectors feature contact resistances as low as 0.1mΩ to 0.5mΩ, reducing energy dissipation and heat generation. Materials like beryllium copper or silver-plated contacts are often used to achieve this performance.

3. Robust Temperature Tolerance

These connectors operate reliably in extreme temperatures, typically from -40°C to +125°C, with some variants rated up to 150°C. High-temperature thermoplastics or ceramic insulators are employed to maintain structural integrity.

4. Vibration and Shock Resistance

Designed to withstand vibrations up to 20G (10-2000Hz) and mechanical shocks of 50G (11ms duration), these connectors ensure stable connections in mobile applications like electric vehicles and aerospace systems.

5. IP67/IP68 Environmental Protection

Most high-end models feature IP67 or IP68 ratings, providing complete protection against dust ingress and temporary (IP67) or prolonged (IP68) immersion in water up to 1-3 meters.

6. Quick-Connect/Disconnect Mechanisms

Advanced latching systems allow for secure connections with mating cycles exceeding 500-1000 insertions, while maintaining contact stability. Some designs incorporate HVIL (High Voltage Interlock Loop) safety features.

Applications of High-Performance Battery Connectors

1. Electric Vehicles (EVs)

In EV battery packs, these connectors link hundreds of cells in series/parallel configurations. They must handle 400V-800V systems while withstanding constant vibration and thermal cycling. Tesla's battery packs, for instance, use custom-designed connectors capable of 600A continuous current.

2. Energy Storage Systems (ESS)

Grid-scale battery installations rely on these connectors for module-to-module connections in 1MWh+ systems. Their low resistance is crucial for maintaining round-trip efficiency above 95% in lithium-ion battery banks.

3. Industrial Equipment

Heavy machinery, such as electric forklifts or mining equipment, uses ruggedized connectors rated for 1000A+ and 1000V, often with additional shielding against electromagnetic interference (EMI).

4. Aerospace and Defense

In aircraft and spacecraft battery systems, connectors must meet MIL-DTL-38999 specifications, combining lightweight construction (aluminum alloys) with the ability to function in vacuum conditions and extreme G-forces.

5. Consumer Electronics

High-end power tools and drones utilize miniaturized versions of these connectors, handling 20-50A in packages as small as 10mm × 5mm, with gold-plated contacts for enhanced durability.

Maintenance Best Practices

1. Regular Inspection

Perform visual checks every 500 operating hours or 6 months (whichever comes first) for:

• Contact erosion (should not exceed 10% of plating thickness)

• Insulation cracks or discoloration (indicates overheating)

• Corrosion, especially in high-humidity environments

2. Cleaning Procedures

Use isopropyl alcohol (99% purity) and lint-free wipes for contact cleaning. For heavy oxidation, employ specialized contact cleaners with <0.1% non-volatile residue. Never use abrasive materials that could damage plating.

3. Torque Verification

Bolted connections should be checked with a calibrated torque wrench per manufacturer specs (typically 0.5-5 Nm for most battery connectors). Under-torquing increases resistance; over-torquing may deform contacts.

4. Thermal Monitoring

Infrared thermography should show temperature differentials <5°C between identical connectors under load. Any hotspot exceeding 10°C above ambient indicates potential failure.

5. Storage Conditions

When not in use, store connectors in 20-25°C, 40-60% RH environments with anti-corrosion vapor barriers. Silica gel packets help maintain dry conditions.

6. Replacement Guidelines

Replace connectors when:

• Contact resistance increases by >20% from baseline

• Visible wear exceeds 30% of contact area

• Insulation resistance drops below 100MΩ (per IEC 60664-1)

High-Performance Battery Pack Connectors represent a critical nexus between energy storage and power delivery across industries. Their evolving designs continue to push boundaries in current density, durability, and miniaturization, enabling next-generation electrification solutions. Proper maintenance ensures they meet their rated 10,000-50,000 cycle lifespan while maintaining safety and efficiency.
