Stamped Aluminum Components: Characteristics, Applications, and Maintenance

Stamped Aluminum Components are precision-engineered parts manufactured through a high-speed stamping process that shapes aluminum alloys into specific geometries using mechanical or hydraulic presses. These components typically exhibit tensile strengths ranging from 70 to 400 MPa (depending on alloy composition), with thicknesses varying between 0.2mm to 6.0mm. The process achieves dimensional tolerances as tight as ±0.05mm for critical features, while maintaining surface roughness values (Ra) between 0.8-3.2μm in standard applications.

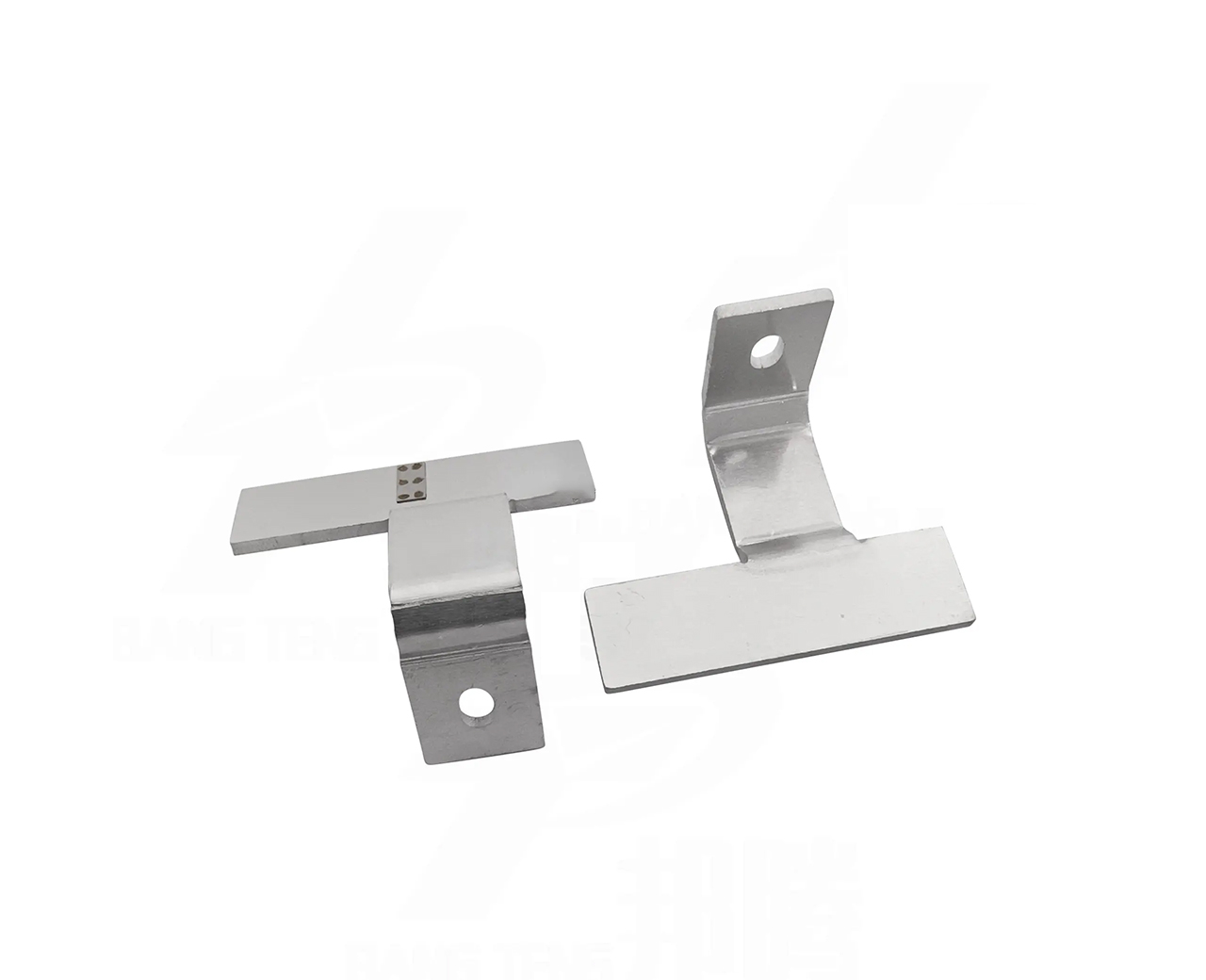

Stamped Aluminum Components

Key Characteristics of Stamped Aluminum Components

Lightweight Construction: With a density of 2.7 g/cm³ (approximately one-third that of steel), Stamped Aluminum Components offer exceptional strength-to-weight ratios. The specific strength (strength-to-density ratio) typically ranges from 70-180 kN·m/kg, making them ideal for weight-sensitive applications.

Corrosion Resistance: Aluminum naturally forms a protective oxide layer (Al₂O₃) with a thickness of 2-10nm that self-repairs when damaged. This provides excellent corrosion resistance, achieving salt spray test performance of 500-1500 hours (ASTM B117) without additional coatings.

Thermal Conductivity: Aluminum alloys used in stamping exhibit thermal conductivity values between 120-220 W/m·K (at 25°C), approximately 4-5 times higher than carbon steel. This makes them particularly suitable for heat dissipation applications.

Electrical Properties: The electrical conductivity of stamped aluminum components ranges from 35-62% IACS (International Annealed Copper Standard), with resistivity values between 2.65-4.75 μΩ·cm at 20°C.

Formability: Aluminum alloys demonstrate excellent formability with elongation at break values of 10-30% (depending on temper), allowing for complex geometries with bend radii as tight as 0.5 times material thickness (for 5000-series alloys).

Primary Application Scenarios

Automotive Industry: Stamped aluminum components account for approximately 30-40% of modern vehicle body structures, reducing weight by 40-50% compared to steel equivalents. Common applications include hoods (typically 0.8-1.2mm thick), door panels (0.7-1.0mm), and structural reinforcements with crush zones designed to absorb 15-25 kJ of impact energy.
Electronics Enclosures: Used in 5G infrastructure housings (with EMI shielding effectiveness of 60-90dB at 1-10GHz) and laptop chassis (typically 0.6-1.0mm thick 6000-series alloy) where thermal management requires heat dissipation of 5-15 W/m²·K.
Aerospace Components: Aircraft interior panels (meeting FAR 25.853 flammability requirements) and structural brackets with fatigue life exceeding 10⁷ cycles at 150MPa stress amplitude.
Renewable Energy Systems: Solar panel frames (with 20-25 year lifespan in outdoor exposure) and wind turbine components capable of withstanding wind loads up to 150 m/s.
Consumer Goods: Appliance panels (with surface hardness of 60-90 Vickers) and cookware components demonstrating thermal cycling resistance between -20°C to 250°C for over 10,000 cycles.

Maintenance Procedures for Stamped Aluminum Components

Cleaning Protocol: Use pH-neutral cleaners (pH 6-8) with non-abrasive tools (soft cloths or brushes with bristle hardness below 80 Shore A). For heavily soiled components, alkaline cleaners with pH ≤11 can be used for limited durations (<5 minutes exposure), followed by thorough rinsing with deionized water (resistivity >1MΩ·cm).

Corrosion Prevention: For marine or industrial environments, apply chromate conversion coatings (0.5-3μm thick) or anodize (10-25μm) to achieve corrosion resistance exceeding 2000 hours in salt spray tests. Regular inspections should check for pitting corrosion, with allowable pit depths typically limited to <10% of material thickness.

Surface Protection: When scratches exceed 0.1mm depth, apply touch-up coatings matching the original surface treatment. For painted components, maintain coating thickness between 20-50μm and repair any breaches where substrate becomes visible.

Mechanical Maintenance: Tighten fasteners to specified torque values (typically 70-90% of proof load for aluminum threads). For moving parts, use lubricants compatible with aluminum (pH 7-9, chloride content <50ppm), reapplying every 500-1000 operating hours.

Storage Conditions: Store components in environments maintained at 10-35°C with relative humidity below 60%. Use vapor corrosion inhibitor (VCI) packaging when storing for >30 days, ensuring the packaging provides at least 0.5g/m³ of inhibitor concentration.

Periodic Inspection: Conduct visual inspections every 6-12 months, checking for:

Stress corrosion cracking (particularly in 2000 and 7000 series alloys)
Galvanic corrosion (when coupled with dissimilar metals)
Fatigue cracks at high-stress areas (radius changes, notches)

Non-destructive testing (dye penetrant or eddy current) should be performed every 2-5 years for critical components.
