Insulated Aluminum Busbar: Technical Overview and Applications

What is an Insulated Aluminum Busbar?

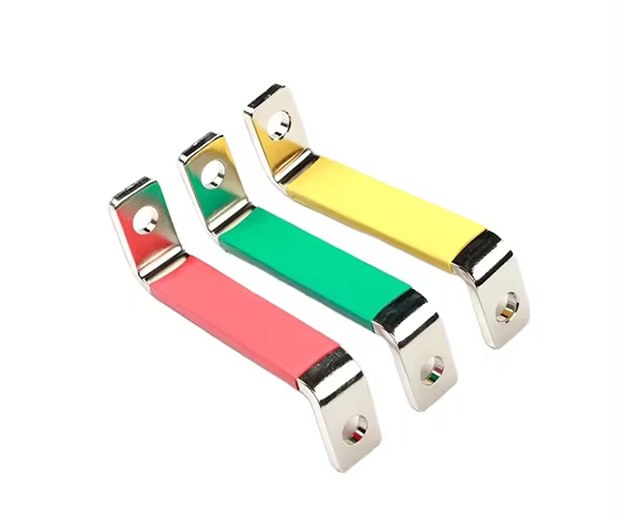

An insulated Aluminum Busbar is a high-current conducting system consisting of aluminum bars encapsulated in specialized insulation materials. These components serve as critical power distribution elements in electrical systems, offering superior conductivity and thermal performance compared to traditional copper alternatives. The insulation layer typically consists of materials like polyester film (175°C thermal class), epoxy powder coating (200°C continuous rating), or silicone rubber (up to 250°C), providing both electrical isolation and environmental protection.

Technical Characteristics

The Insulated Aluminum Busbar system demonstrates several superior performance characteristics:

Electrical Properties

Aluminum busbars offer 2.82×10⁻⁸ Ω·m resistivity at 20°C, with modern alloys achieving up to 58-62% of copper's conductivity while weighing only 30% as much. The skin effect ratio (AC to DC resistance) remains below 1.15 for frequencies up to 400Hz, making them suitable for most industrial applications.

Thermal Performance

The thermal conductivity of aluminum (205 W/m·K) combined with proper insulation allows for efficient heat dissipation. Typical designs maintain ≤30°C temperature differential across the busbar cross-section at rated current. The coefficient of thermal expansion (23.1×10⁻⁶/°C) requires proper joint design to accommodate thermal cycling.

Mechanical Properties

6061-T6 aluminum alloy provides 276 MPa tensile strength and 255 MPa yield strength, with hardness of 95 Brinell. The insulation system typically adds 0.5-2.0mm thickness per side while maintaining flexibility (minimum bend radius of 4× thickness for most insulated designs).

Corrosion Resistance

Anodized aluminum surfaces (5-25μm thickness) combined with insulation provide excellent corrosion resistance, achieving >1,000 hours in salt spray tests (ASTM B117). The aluminum oxide layer forms a natural barrier with 10¹⁴ Ω·cm resistivity.

Application Scenarios

Power Distribution Systems

Insulated aluminum busbars are extensively used in LV/MV switchgear (up to 36kV), where they replace traditional cabling in 2,000A to 6,300A applications. Their compact design allows for 40-60% space reduction compared to cable solutions.

Renewable Energy Systems

In solar farms, insulated busbars connect 1,500VDC photovoltaic arrays with ≤1.5% voltage drop over 100m runs. Wind turbine applications benefit from their 50% weight reduction versus copper in nacelle power distribution.

Industrial Machinery

Manufacturing equipment utilizes insulated busbars for 400-690VAC power distribution in CNC machines, with 3-5% lower energy losses compared to conventional wiring methods.

Transportation Infrastructure

Railway systems employ these busbars in 750V-25kV traction power networks, where their vibration resistance (>5G) and IP65 protection ensure reliable operation.

Data Centers

Modern data centers implement insulated aluminum busways for 480VAC, 4,000A power distribution, achieving 99.99% availability with 30% lower installation costs than copper alternatives.

Maintenance Procedures

Routine Inspection

Quarterly inspections should include:

• Thermal imaging to identify hot spots (>10°C above ambient indicates concern)

• Insulation resistance testing (minimum 1MΩ per kV of operating voltage)

• Torque verification of connections (typically 20-50 N·m depending on size)

Cleaning Procedures

Biannual cleaning should:

• Use isopropyl alcohol (99% purity) for insulation surfaces

• Apply inhibited alkaline cleaners (pH 9-11) for aluminum surfaces

• Remove oxidation with fiberglass brushes (0.1mm bristle diameter)

Preventive Maintenance

Annual maintenance tasks include:

• Reapplication of anti-oxidation compound (zinc-rich, >85% solids) on contact surfaces

• Verification of creepage distances (>20mm/kV for pollution degree II)

• Insulation integrity testing (5kV AC for 1 minute for medium voltage systems)

Correction of Common Issues

Address typical problems with:

• Hot joints: Reface with 120-grit abrasive and apply 0.05-0.1mm silver plating

• Insulation damage: Repair with Class H (180°C) insulating tape or two-part epoxy

• Vibration loosening: Install Nord-Lock washers or apply thread-locking compound (medium strength)
