As solar energy becomes increasingly important for global renewable energy initiatives, efficiency and reliability in photovoltaic (PV) systems are more critical than ever. One key innovation that drives higher efficiency and durability in solar panels is busbar technology. Understanding busbar technology for solar panels, including its functions, types, working principles, advantages, and applications, is essential for manufacturers, engineers, and overseas buyers.
Busbar technology refers to the design, material selection, and layout of conductive strips, called busbars, that collect and transmit electricity generated by solar cells to the output terminals of a solar panel. These busbars are typically made of copper busbar or Aluminum Busbar and can be Solid Busbar or Flexible Busbar depending on the application.
Modern solar panels increasingly use multi-busbar technology, which incorporates multiple thinner busbars rather than a single wide bar, to enhance current collection efficiency and reduce resistive losses.
The primary functions of solar panel busbar include:
Current Collection: Busbars gather the electrical current from individual solar cells and consolidate it into a single flow for the panel’s output.
Reducing Electrical Resistance: High-conductivity materials, such as copper busbar, help minimize power losses.
Enhancing Reliability: Proper busbar design prevents hotspots and reduces the risk of localized overheating.
Providing Safe Connections: Insulated busbars prevent short circuits and improve the overall safety of the solar panel system.
Several types of busbars are used in modern PV modules:
Copper Busbar – High conductivity and durability; often used in high-performance panels.
Aluminum Busbar – Lightweight and cost-effective, commonly used in commercial installations.
Flexible Busbar – Ideal for PV modules that experience thermal expansion or mechanical stress.
Solid Busbar – Traditional rigid design, suitable for stable and fixed installations.

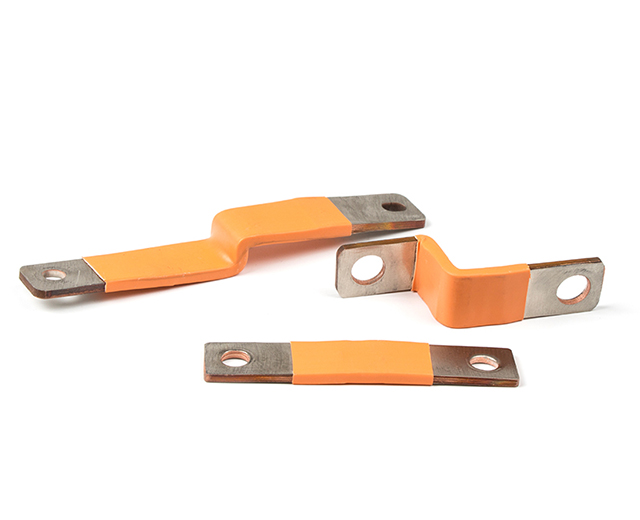

Insulated Busbars – Coated or encased busbars that prevent accidental contact and improve safety.
Multi-Busbar Technology – Incorporates multiple busbars per solar cell to reduce resistance, improve efficiency, and lower shading losses.
Busbar technology operates on the principle of efficient current collection and transmission:
Sunlight generates electrical current in individual solar cells.
Each cell is connected to thin bus bars, which collect the electricity.
The collected current is transmitted through bus bars to the panel’s main ribbons or output terminals.
Multi-busbar technology reduces the distance electrons must travel through the cell, minimizing resistive losses and hotspots.
In some designs, flexible busbar allows for thermal expansion and mechanical movement without compromising connectivity.
Higher Efficiency: Multi-busbar technology significantly reduces resistance, improving energy output.
Improved Reliability: Reduced risk of hot spots and mechanical failure due to flexible busbar design.
Enhanced Safety: Use of insulated busbars prevents accidental short circuits.
Mechanical Stability: Solid busbar and flexible busbar options accommodate vibration and thermal stress.
Versatility: Compatible with residential, commercial, and industrial solar panels.
Busbar technology is applied in various solar energy scenarios:
Residential Solar Panels: High-quality copper busbar and multi-busbar technology ensure safe and efficient electricity collection.
Commercial and Industrial Installations: Multiple bus bars distribute current evenly across large arrays, minimizing losses.
Solar Battery Packs: Busbars provide a reliable connection path for stored energy.
Portable or Flexible Solar Panels: Flexible busbar design allows panels to bend and move without damaging connections.
High-Voltage Modules: Aluminum busbar reduces weight while maintaining conductivity.
