Solid Aluminum Busbar
A flat bus bar is a wide, flat electrical conductor used for efficient current distribution in electrical systems. It is commonly made of copper or aluminum and designed to reduce resistance, heat generation, and voltage drops in power distribution networks.
A flat Copper Busbar provides excellent conductivity, while copper flat busbar designs ensure stable and efficient current flow in high-power applications. These busbars are essential in switchgear, battery packs, industrial panels, and renewable energy systems.
Flat Copper Busbar designs are also available in insulated versions, such as Insulated Flat Battery Accessories Busbar, which provide additional safety by preventing accidental contact and short circuits.
Manufacturing a flat copper busbar or aluminum variant involves the following steps:
Material Selection – Choose high-conductivity copper for copper flat busbar or aluminum for Aluminum Flat Bars.
Cutting & Shaping – Precision cutting and stamping create flat busbars of exact dimensions.

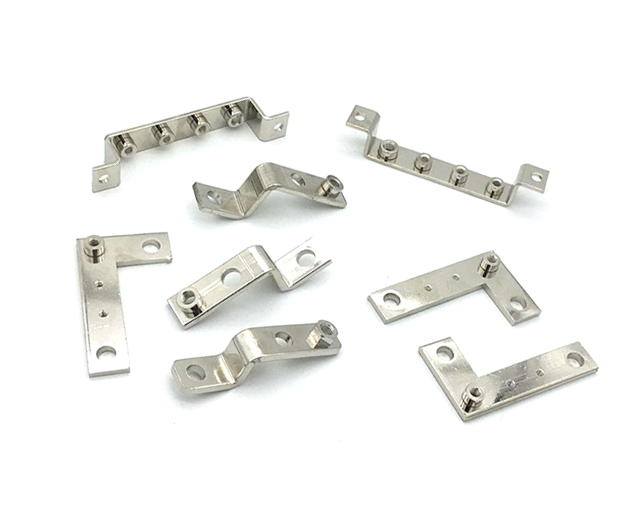

Surface Treatment – Copper busbars can be tinned or nickel-plated; aluminum can be anodized or coated.
Insulation (Optional) – Apply insulating sleeves or coatings for Insulated Flat Battery Accessories Busbar.
Quality Testing – Each busbar undergoes strict conductivity, thickness, and mechanical tests.
For high-current applications, Solid Aluminum Busbar and Aluminum Bus Bar Alloy variants are produced to ensure structural strength and thermal stability. Aluminum Nickel Busbar provides improved corrosion resistance and solderability for industrial and battery applications.
High Conductivity – Flat copper busbar and copper flat busbar provide low resistance for efficient current flow.
Corrosion Resistance – Aluminum Nickel Busbar and plated copper options resist oxidation and environmental wear.
Custom Dimensions – Width, thickness, and hole patterns can be customized to fit any application.
Thermal Stability – Suitable for high-current, high-temperature applications.
Insulation Options – Optional insulation for battery or high-voltage applications (Insulated Flat Battery Accessories Busbar).
Lightweight Alternatives – Aluminum variants such as Solid Aluminum Busbar or Aluminum Flat Bars reduce overall system weight without sacrificing performance.
Electrical Panels and Switchgear – Distribute power efficiently across circuits.
Battery Connection Systems – Insulated Flat Battery Accessories Busbar for EVs, energy storage, and backup power systems.
Industrial Equipment – Heavy-duty power distribution in factories and automation systems.
Renewable Energy Systems – Solar inverters and wind energy converters.
Aerospace and Transportation – Lightweight Aluminum Flat Bars and Aluminum Bus Bar Alloy used where weight and conductivity are critical.
| Parameter | Specification |
|---|---|
| Material | Copper, Aluminum, Aluminum Alloy |
| Conductivity | Copper: ≥ 98% IACS; Aluminum: ≥ 61% IACS |
| Thickness | 1–20 mm (customizable) |
| Width | 10–200 mm (customizable) |
| Surface Finish | Nickel-plated, Tin-plated, Anodized |
| Insulation | Optional for battery applications (Insulated Flat Battery Accessories Busbar) |
| Current Rating | Up to several thousand amps, depends on material and size |
Reliable Electrical Performance – Ensures low voltage drop in high-current systems.
Mechanical Strength – Aluminum and copper alloys resist bending and deformation.
Corrosion Resistance – Nickel-plated or anodized surfaces extend service life.
Customizable Designs – Compatible with complex system layouts, including multi-hole patterns and bends.
Determine Current Capacity – Choose width, thickness, and material based on expected load.
Select Material – Copper for high conductivity, aluminum for lightweight applications.
Consider Surface Treatment – For longevity, use Aluminum Nickel Busbar or plated copper options.
Insulation Needs – For batteries or high-voltage systems, use insulated variants.
Plan Layout – Ensure hole patterns, bends, and mounting align with your electrical panel or battery system.
High-Quality Materials – Pure copper and premium aluminum alloys for excellent conductivity.
Advanced Manufacturing – Precision cutting, plating, and insulation for reliable performance.
Custom Solutions – Flat copper busbar, Aluminum Bus Bar Alloy, and Insulated Flat Battery Accessories Busbar tailored to your specifications.
Global Standards Compliance – Products meet IEC, UL, and international electrical standards.
Durable and Cost-Effective – Optimized designs ensure long-term reliability while reducing maintenance costs.
A Flat Copper Busbar is a flat, wide electrical conductor made of copper, designed for efficient current distribution in electrical systems. It reduces resistance, heat generation, and voltage drops compared to wires.
Copper Flat Busbar and Flat Copper Busbar refer to the same type of flat copper conductor. The terms are used interchangeably in industrial and electrical applications.
An Insulated Flat Battery Accessories Busbar is a flat busbar with an insulating layer to prevent short circuits and accidental contact. It is widely used in EVs, battery packs, and high-voltage energy storage systems.
Flat busbars can be made of copper or aluminum. Examples include Aluminum Flat Bars, Solid Aluminum Busbar, and Aluminum Bus Bar Alloy. For corrosion resistance and improved solderability, Aluminum Nickel Busbar options are also available.
Aluminum Nickel Busbar and nickel-plated options provide better corrosion resistance, durability, and long-term stability, especially in harsh environments or high-temperature applications.
Yes. We provide customized Flat Copper Busbar, Copper Flat Busbar, and Aluminum Flat Bars with specific dimensions, hole patterns, bends, and insulation based on your project requirements.
Properly manufactured Flat Copper Busbar or Solid Aluminum Busbar can last decades, depending on the environment and load, thanks to protective coatings and high-quality base materials.
