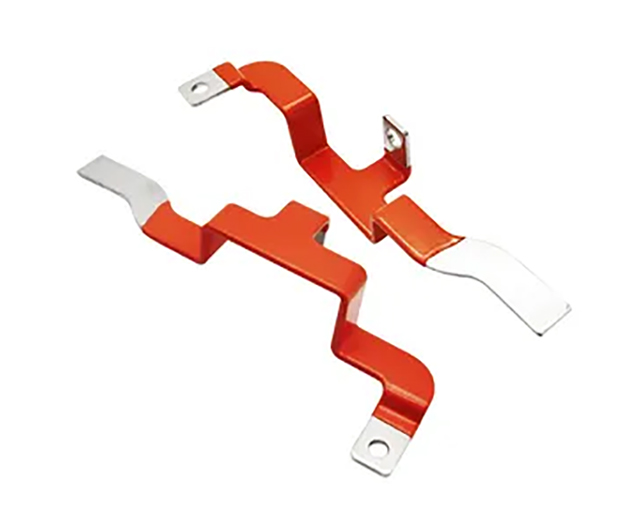

EV Battery Busbar

1. What Is an EV Battery Busbar?

An EV Battery Busbar is a critical electrical component used to interconnect battery cells and modules within electric vehicles. Made from high-purity copper or tinned copper laminated foils, these busbars ensure efficient current flow, reduce electrical resistance, and maintain safety through high-quality insulation materials such as PVC, heat shrink tubing, or silicone sleeves. Their flexible and robust design supports high current carrying capacity and vibration resistance, making them indispensable for modern electric vehicle battery packs.

2. How To Make an EV Battery Busbar

The manufacturing process involves:

1. Material Selection: High-conductivity copper or tinned copper foils.

2. Lamination: Multiple layers of copper foils laminated for desired thickness and flexibility.

3. CNC Machining: Precision cutting, punching, and bending to exact dimensions.

4. Surface Treatment: Tin plating to enhance corrosion resistance.

5. Insulation Application: Using flame retardant heat shrink tubing, PVC, or silicone coatings.

6. Quality Testing: Ensuring electrical, mechanical, and thermal compliance with industry standards.

3. EV Battery Busbar Is Used in Application Fields

EV Battery Busbars are widely used in:

• Electric Vehicle (EV) Battery Packs for cell-to-cell and module connections.

• Hybrid Electric Vehicles (HEV) battery systems.

• Energy Storage Systems (ESS) in automotive applications.

• Charging Stations and related power electronics.

4. The Characteristics of EV Battery Busbars

• High Electrical Conductivity: Using oxygen-free or tinned copper foils.

• Flame Retardant Insulation: Meets UL94-V0 and RoHS standards.

• Flexible and Durable: Adapts to tight spaces, resists vibration and mechanical stress.

• Customizable Designs: Tailored thickness, length, and hole patterns.

• Compliance with Automotive Standards: Ensures safety and reliability.

5. How To Design the EV Battery Busbar

Design considerations include:

• Current capacity and voltage requirements.

• Mechanical flexibility and bend radius.

• Hole placement for battery terminal connections.

• Choice of insulation material based on operating environment.

• Thermal management to withstand battery heat.

6. How To Customize EV Battery Busbars

G and N Fortune Limited offers:

• Custom dimensions, hole patterns, and terminal shapes.

• Multiple insulation options: PVC, heat shrink tubing, silicone sleeves.

• Surface finishes: tin plating, nickel plating, bare copper.

• Prototype development and large-scale production.

7. Why Choose G and N Fortune Limited EV Battery Busbars?

15+ years manufacturing experience
Compliance with automotive UL, RoHS, and IEC standards
Advanced CNC and lamination technologies
Flexible customization and fast delivery
Competitive pricing and global shipping

FAQ – EV Battery Busbar

1. What materials are used in EV battery busbars?

Primarily oxygen-free copper and tinned copper laminated foils with flame retardant insulation.

2. Can EV battery busbars be customized?

Yes, fully customizable to fit various EV battery pack designs.

3. What current can EV battery busbars handle?

Depending on design, typically from hundreds up to thousands of amperes.

4. Are your EV battery busbars certified?

Yes, compliant with RoHS, UL, and automotive safety standards.

5. What is the lead time?

Samples: 5–7 days; bulk orders: 10–15 days, depending on quantity and specs.
