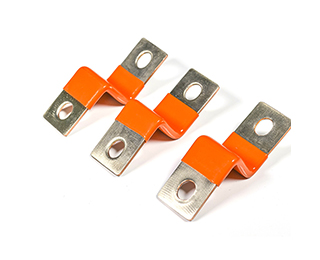

Solid Copper Busbar
A custom Copper Busbar is a specially designed conductive component manufactured to meet the unique electrical and mechanical requirements of a specific application. Compared with standard busbars, custom Copper Busbars provide optimized current-carrying capacity, improved installation efficiency, and enhanced system reliability.
As electrical systems become more compact and power demands continue to increase, Custom Copper Busbars are widely used in renewable energy, electric vehicles, industrial equipment, switchgear, and battery energy storage systems.
A custom copper busbar is a conductive metal strip, bar, or fabricated component made from high-conductivity copper and engineered according to customer specifications.
Customization may include:
Thickness and width
Length and shape
Hole patterns
Bending configurations
Surface plating
Insulation requirements
Current-carrying capacity
These busbars are designed to efficiently distribute electrical power while reducing energy loss and simplifying system assembly.
Copper offers excellent electrical conductivity, making it the preferred material for high-current applications.
Benefits include:
Lower resistance
Reduced voltage drop
Improved energy efficiency
Better thermal performance
Custom-designed copper busbars can be manufactured to fit complex equipment layouts, maximizing available installation space.
Compared with multiple cable connections, a custom copper busbar creates fewer connection points, reducing maintenance requirements and improving system stability.
Custom busbars simplify installation processes and reduce labor costs by replacing multiple wiring assemblies with a single integrated conductor.
C1100 electrolytic tough pitch copper is widely used because of its high conductivity and excellent fabrication properties.
Oxygen-free copper is suitable for applications requiring maximum conductivity and high-performance electrical connections.
Tin plating improves corrosion resistance and enhances long-term electrical performance.
Nickel plating provides excellent wear resistance and high-temperature durability.
Silver plating offers superior conductivity and is commonly used in critical electrical applications.
| Parameter | Details |
|---|---|
| Material | T2 Copper (or T1, TU1, TU2, etc.) |
| Conductivity | > 100 IACS |
| Thickness Range | 1mm, 2mm, 3mm, Other |
| Width Range | 10mm, 20mm, 30mm, Other |
| Plating Options | Tin, Nickel, Silver |
| Insulation Options | Heat Shrink Tube, PVC Coating, Epoxy Powder |
| Length Range | Up to 6m |
| Tolerance | ±0.1mm |
| Main Processes | Cutting, Punching, Bending, Drilling, Tapping, CNC Machining |
| Packaging | Standard Thick Carton |
| Certifications | ISO9001 & IATF16949:2016 |
| Customization | OEM/ODM available for special dimensions, shapes, and structures |
| Application Fields | Power distribution, automotive, industrial equipment, electrical systems |
Custom copper busbars connect battery modules and distribute power efficiently throughout energy storage systems.
EV manufacturers use custom copper busbars to connect battery cells, modules, and power electronics while minimizing energy loss.
Copper busbars provide reliable electrical connections in switchboards, switchgear assemblies, and power distribution systems.
Solar and wind power installations use custom copper busbars for efficient energy transmission and system integration.
Industrial machinery often requires custom busbar solutions to support high-current electrical loads and compact equipment designs.
High-quality copper sheets or bars are selected according to project specifications.
Precision CNC machining ensures accurate dimensions, hole locations, and complex geometries.
Advanced punching and laser-cutting technologies create precise busbar profiles.
Custom bends are formed to match equipment layouts and installation requirements.
Available finishes include:
Tin plating
Nickel plating
Silver plating
Insulation coating
Powder coating
Every custom copper busbar undergoes strict inspections for:
Dimensional accuracy
Conductivity
Surface quality
Plating thickness
Mechanical performance
When developing a custom copper busbar solution, manufacturers typically evaluate:
The busbar must safely carry the required current without excessive heat generation.
Thermal management is critical for maintaining long-term system performance.
Environmental factors such as humidity, vibration, and corrosion exposure influence material and coating selection.
The busbar must withstand operational stresses and installation requirements.
Designs should comply with relevant industry standards and customer specifications.
An experienced custom copper busbar manufacturer can provide:
Engineering support
Material selection guidance
Rapid prototyping
Precision CNC machining
Surface finishing services
Strict quality control
Flexible production volumes
By working with a professional supplier, customers can achieve optimal electrical performance, reduced assembly costs, and improved product reliability.
A custom copper busbar is an efficient and reliable solution for modern electrical power distribution systems. Whether used in EV battery packs, energy storage systems, switchgear, renewable energy projects, or industrial equipment, customized copper busbars offer superior conductivity, compact design, and long-term performance. Choosing the right custom busbar design and manufacturing partner can significantly enhance the efficiency and reliability of your electrical systems.
