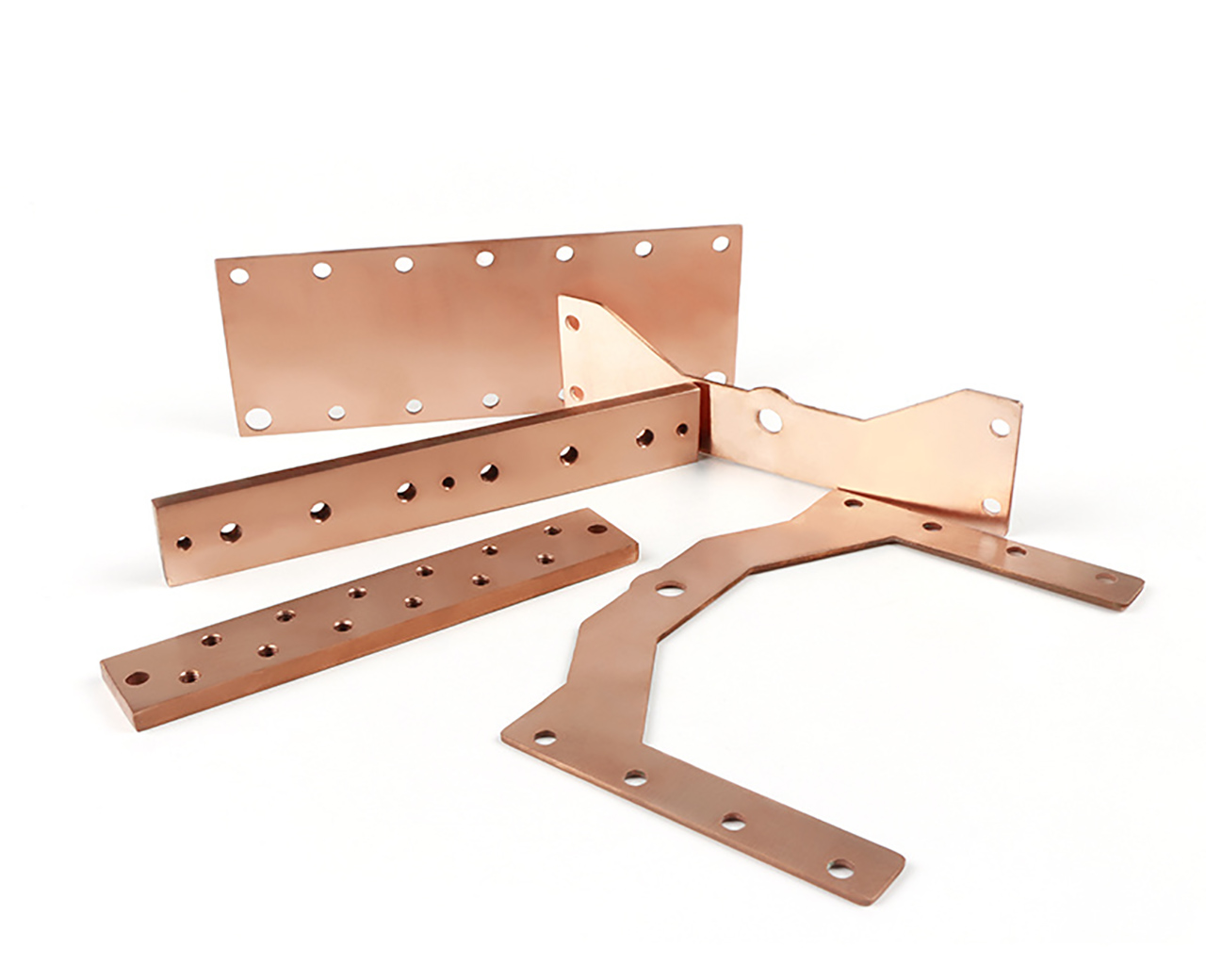

Solid Copper Busbar
A Flat Copper Busbar is a rectangular-shaped conductor made of high-purity copper, designed for efficient power distribution in electrical and electronic systems. Unlike round wires, Copper Flat Bar Busbars provide a large surface area, reducing resistance and enhancing current-carrying capacity.
Whether it's a Bare Flat Copper Busbar for general electrical use or a Tinned Flat Copper Busbar for corrosive environments, flat copper conductors are a preferred choice for compact, high-efficiency power transmission in modern electrical systems.
Also referred to as Flat Electrical Copper Busbars, Solid Flat Copper Busbars, or simply Flat Busbars, these components serve as essential elements in switchboards, battery packs, solar inverters, and more.
The production of a Flat Copper Busbar involves several precision steps to ensure electrical, thermal, and mechanical integrity:
Material Selection: High-conductivity copper such as T2 copper or oxygen-free copper is used for optimal performance.
Cutting and Shaping: Raw copper is cut into specific dimensions using CNC shearing or rolling equipment.
Surface Treatment: Depending on requirements, the bar may be tin-plated (Tinned Flat Copper Busbar) or left untreated (Bare Flat Copper Busbar).
Customization: Features such as holes, bends, notches, and insulation sleeves can be added to create a Custom Flat Copper Busbar.
Inspection: Quality checks ensure dimensional accuracy, conductivity, and plating adhesion.
At G and N Fortune Limited, we use automated and CNC-controlled processes to produce precise, reliable Copper Flat Busbars suitable for high-performance electrical systems.
Flat Copper Busbars are widely used across numerous industries due to their electrical efficiency and mechanical simplicity. Common applications include:
Electrical Panels & Switchgear: Flat Electrical Copper Busbars are ideal for compact, high-load distribution systems.
Battery Packs: Used as conductors in lithium-ion and EV battery modules.
Solar Energy Systems: Critical in inverters and photovoltaic connectors.
EV Charging Stations: Provide durable, low-resistance connections.
Industrial Automation & Control Cabinets: Efficient power carriers in machinery and PLC panels.
Transformers & Power Inverters: Used for internal power linking.
Whether you need a Flat Bus bar for renewable energy or a Copper Flat Bar Busbar for high-current circuits, G and N Fortune Limited has the right solution.
Our Solid Flat Copper Busbars and Flat Electrical Copper Busbars offer the following key advantages:
High Conductivity: Made from 99.9% pure copper for excellent electrical performance.
Thermal Stability: Effectively dissipates heat during high current loads.
Mechanical Strength: Maintains form under mechanical stress or thermal expansion.
Surface Flexibility: Options for bare or tinned surfaces for corrosion resistance.
Customization: Fully custom flat copper busbar options to match specific requirements.
Space Efficiency: Thin, wide profile allows better use of limited space compared to round cables.
Each Flat Copper Busbar is engineered to meet stringent standards in power transmission and system safety.
Designing a Copper Flat Busbar involves both electrical and structural considerations:
Current Rating: Cross-sectional area is determined based on load requirements.
Temperature Rise: Must maintain stable thermal output under continuous operation.
Voltage Drop: Keep resistance low across the full length of the busbar.
Mounting & Layout: Hole patterns and bend configurations should match panel or battery layout.
Plating or Insulation: Choose Tinned Flat Copper Busbar for outdoor or high-humidity use; add insulation for enclosed spaces.
At G and N Fortune Limited, our engineering team can assist in custom sizing, CNC punching, and insulation application, helping you build the most efficient flat busbar layout for your project.
G and N Fortune Limited is a trusted supplier of Flat Copper Busbar solutions with years of experience and global reach. Here’s why we’re the right partner:
Complete Customization: We manufacture Custom Flat Copper Busbars in a wide range of sizes, thicknesses, and finishes.
High-Precision Equipment: Advanced CNC cutting, punching, and bending ensure dimensional accuracy.
Global Supply Capability: We support bulk and OEM orders with fast lead times and competitive pricing.
Versatile Packaging: Safe, export-grade packaging for heavy copper bar shipments.
Strict Quality Control: Full inspection of material purity, surface treatment, and final product dimensions.
Whether you need Copper Flat Busbars for industrial switchgear, Flat Electrical Copper Busbars for solar systems, or Bare Flat Copper Busbars for battery packs, G and N Fortune Limited delivers reliability, efficiency, and customization at scale.
A: A Flat Copper Busbar is used for power distribution in electrical panels, switchgear, battery packs, transformers, and energy storage systems. Its flat shape offers excellent conductivity and space efficiency.
A: Most Flat Copper Busbars are made from T2 copper or oxygen-free copper for high conductivity. Surface treatments like tin plating or silver plating can be added to enhance corrosion resistance.
A: Yes, G and N Fortune Limited provides Custom Flat Copper Busbar solutions with tailored dimensions, hole patterns, bending, insulation, and plating based on your specifications.
A: Bare busbars have no surface coating and are ideal for indoor use. Tinned busbars have a tin coating for improved corrosion resistance, especially in humid or outdoor environments.
A: Absolutely. Our Flat Electrical Copper Busbars and Copper Flat Bar Busbars are widely used in EV battery packs, solar inverters, and energy storage systems for their stability and conductivity.
A: We support flexible MOQs depending on the size, complexity, and whether it’s a custom order. Please contact us for detailed MOQ information.
