Electrical grounding is one of the most important safety measures in power distribution systems. Whether in industrial facilities, data centers, renewable energy systems, or commercial buildings, an earth busbar plays a critical role in ensuring electrical safety and equipment protection.
In this guide, we'll explain what an earth bus bar is, how it works, the difference between a busbar and an earth bar, and why copper earth bars are widely used in grounding systems.

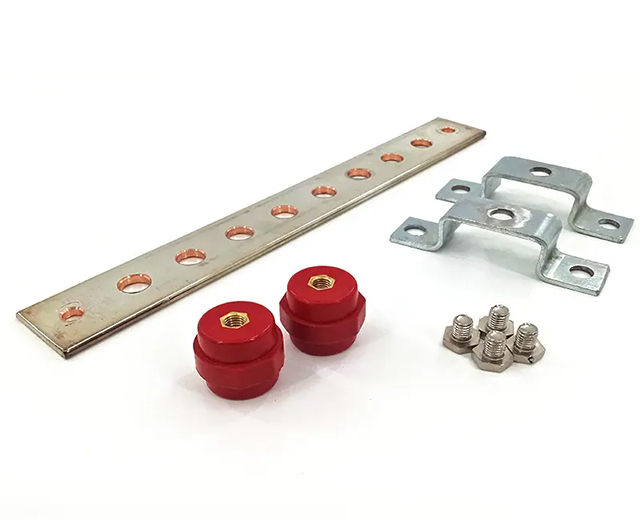

An earth busbar, also known as an earthing busbar, grounding Copper Busbar, or earth bus bar, is a conductive metal bar designed to collect and distribute grounding connections in an electrical system.
The primary purpose of an electrical earth busbar is to provide a common grounding point for electrical equipment, allowing fault currents and leakage currents to safely flow into the earth.
Most earth busbars are manufactured from high-conductivity copper because copper offers:
Excellent electrical conductivity
High corrosion resistance
Long service life
Superior mechanical strength
Low maintenance requirements
Common products include:
Copper earth busbar
Earthing busbar copper
Copper earth bar
Copper earthing busbar
Copper earth bus bar
Tin plated earth bar
A grounding busbar is a conductive strip used to connect multiple grounding conductors into one centralized grounding system.
A grounding Copper Busbar serves several important functions:
During electrical faults, the busbar grounding system safely channels excess current to the ground.
It ensures that all equipment shares the same electrical potential, reducing the risk of electric shock.
A busbar for earthing is commonly integrated into lightning protection systems to dissipate surge currents.
Proper busbar earthing protects sensitive electrical equipment from overvoltage and electrical disturbances.
Applications of busbar earth systems include:
Switchgear panels
Data centers
Power distribution cabinets
Telecommunications systems
Solar and renewable energy projects
Industrial plants
Substations and transformer stations
Many engineers ask, "How does an earth bar work?"
An earth copper bar functions as a centralized grounding conductor.
The working principle is straightforward:
Electrical equipment is connected to the copper ground bar.
All grounding conductors are bonded to the earthing bus bar.
In the event of leakage current or a fault, current flows through the copper earthing bar.
The fault current is safely discharged into the earth through the grounding system.
This process:
Prevents electric shock hazards
Reduces equipment damage
Stabilizes system voltage
Improves electromagnetic compatibility (EMC)
Ensures compliance with international electrical standards
Without an effective earthing busbar, electrical systems become vulnerable to faults, surges, and dangerous touch voltages.
A frequently asked question is:
Although both are conductive bars, their functions are completely different.
| Item | Power Busbar | Earth Bar |
|---|---|---|
| Function | Conducts electrical power | Conducts fault and grounding currents |
| Current Type | Live current | Fault or leakage current |
| Connection | Connects power circuits | Connects grounding conductors |
| Voltage | Carries system voltage | Normally at zero potential |
| Application | Distribution systems | Grounding and bonding systems |
A standard busbar distributes electricity between circuit breakers and equipment, while a copper earth busbar is dedicated to safety grounding.
Therefore, busbar grounding and power distribution busbars serve different but complementary purposes.
A copper earth bar manufacturer typically recommends copper because it offers unmatched performance in grounding applications.
Copper earth bars provide low resistance paths for fault currents.
Earth bar copper products maintain stable performance even in humid and corrosive environments.
A copper earth bar manufacture process produces durable products that can operate for decades.
A copper earthing busbar can be drilled, punched, and customized according to project requirements.
Most copper earth bars comply with:
IEC standards
UL standards
BS EN standards
IEEE grounding requirements
RoHS requirements
Many projects prefer a tin plated earth bar instead of bare copper.
Advantages:
Lower cost
Excellent conductivity
Suitable for indoor environments
Advantages:
Improved corrosion resistance
Better oxidation protection
Suitable for marine and outdoor environments
Longer service life under harsh conditions
For data centers, renewable energy systems, and coastal installations, a tin plated earth bar is often the preferred solution.
A copper earth bus bar is widely used in numerous industries:
Main switchboards
Distribution cabinets
Transformer stations
Server grounding
Equipotential bonding
Surge protection systems
Solar PV grounding systems
Battery energy storage systems (BESS)
Wind turbine grounding
CNC machines
Automation systems
Electrical control panels
Communication cabinets
Base stations
Network equipment grounding
A professionally designed earthing busbars system significantly improves electrical safety and system reliability.
When selecting an earth busbar, consider:
Choose high-purity copper for maximum conductivity.
Select a tin plated earth bar if corrosion resistance is required.
Determine the appropriate thickness, width, and hole configuration according to current capacity.
Indoor and outdoor environments require different protective finishes.
An experienced copper earth bar manufacturer can provide customized:
Hole patterns
Threaded studs
Tin plating thickness
Special dimensions
Mounting accessories
An earth busbar is an essential component of every electrical grounding system. Whether referred to as an earthing busbar copper, copper earth busbar, copper ground bar, or grounding Copper BusBar, its primary function is to safely conduct fault currents and maintain electrical safety.
Compared with ordinary power busbars, a copper earth bar is specifically designed for grounding and bonding applications. Choosing high-quality copper earth bars or a tin plated earth bar from a reliable copper earth bar manufacturer ensures long-term performance, equipment protection, and compliance with international safety standards.
